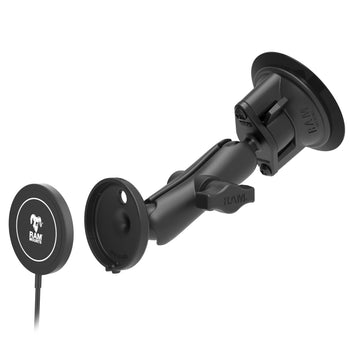

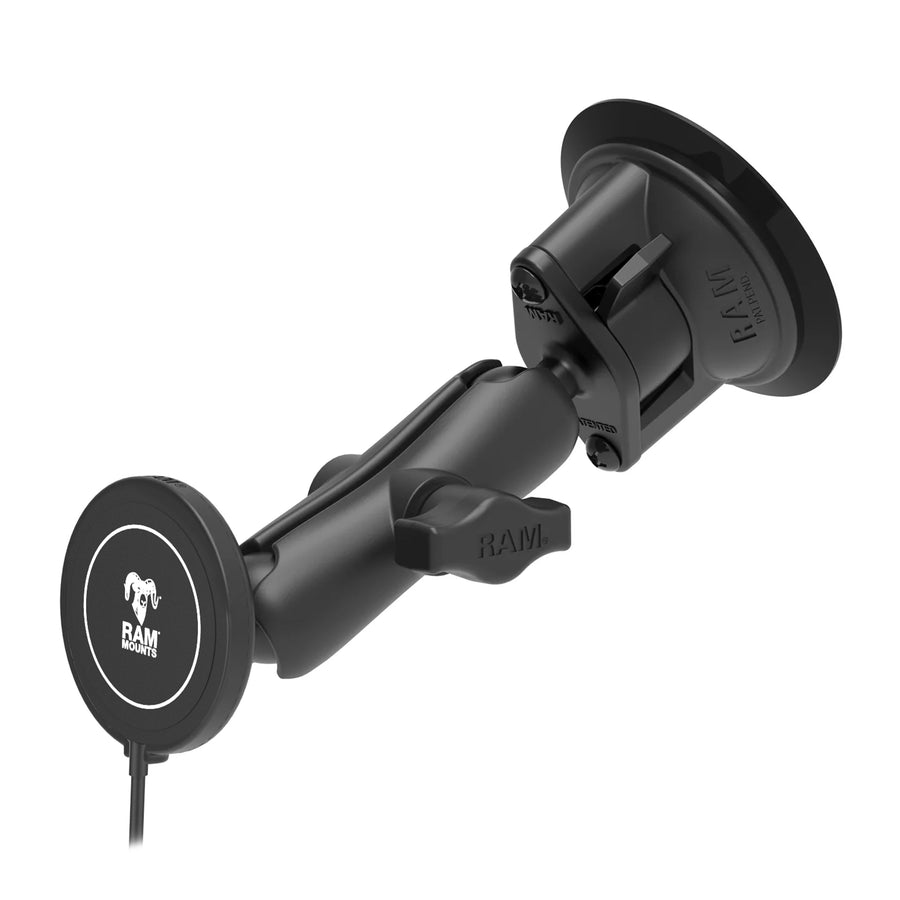

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger

Part #: RAM-B-166-AP-MAG-1-W2MU UPC: 793442031724 Patented

Features

Wireless charging bundle built for windshields and other non-porous surfaces
15W Qi2 fast charging for efficient power delivery
Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm
Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger

Product Information

Overview

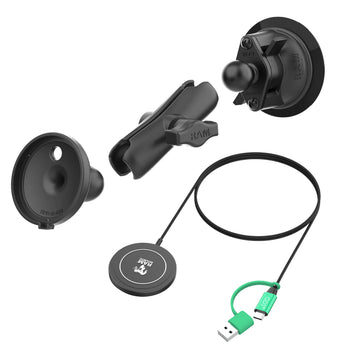

The RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just secure the Twist-Lock™ with the flick of a lever for a no-tools installation, it’s that easy. This kit includes the RAM® Qi2 15W Wireless Charger, ball adapter, Twist-Lock™ suction cup base, and B size medium socket arm—designed to secure to any non-porous surface like windshields. With IP67 waterproof protection and a durable woven USB-C cord, you’ll get a reliable charge every time. Plus, harness your iPhone’s MagSafe® magnetic charging for a seamless, secure connection, no fumbling with cables.

Specifications
hardware included	Assembly Hardware (1) RAM® Qi2 Wireless Charging Puck
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
power specifications	Operating Frequency: 360KHZ Stand-by Consumption ~ 0.008A / 8mA @5VDC 80% Wireless Power Transfer Efficiency or Greater Supports USB 2.0 BC1.2 Power Supply (5V) Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage	USB 5V @ 3A QC2.0 9V @ 2.22A USB PD 2.0 5-15V @ 2A
power output	BPP - 5W EPP - 7.5W MPP - 15W

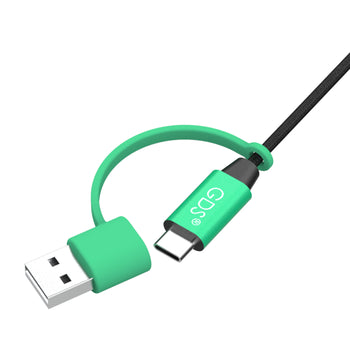

output connector	USB Type-C Male with USB-A Adapter
output cable length	1 Meter
operating temperature	0°C to +40°C
storage temperature	-20°C to +80°C
regulatory	Over Current Protection Short Cirtcuit Protection Over Temperature Protection RoHS Compliance WEEE Compliance
certifications	IP67 SAE J1455 FCC Certification CE Certification E-Mark Certification RCM Certification
Additional Information	The included wireless charger will support up to 8mm charging distance between puck and device.

Patented

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger

Name: RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger
Brand: RAM Mounts
SKU: RAM-B-166-AP-MAG-1-W2MU
Price: 106.99 USD
Availability: OutOfStock

Part#: RAM-B-166-AP-MAG-1-W2MU

UPC: 793442031724

Kit Components

$106.99

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Wireless charging bundle built for windshields and other non-porous surfaces
15W Qi2 fast charging for efficient power delivery
Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm
Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck

suction size:

3.3" Diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:

The included wireless charger will support up to 8mm charging distance between puck and device.
