RAM® Twist-Lock™ Suction Cup Mount with Flat Panel Adapter

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Twist-Lock^™ Suction Cup Mount with Flat Panel Adapter
Part #: RAM-B-166-375U UPC: 793442930034 Patented

Product Information

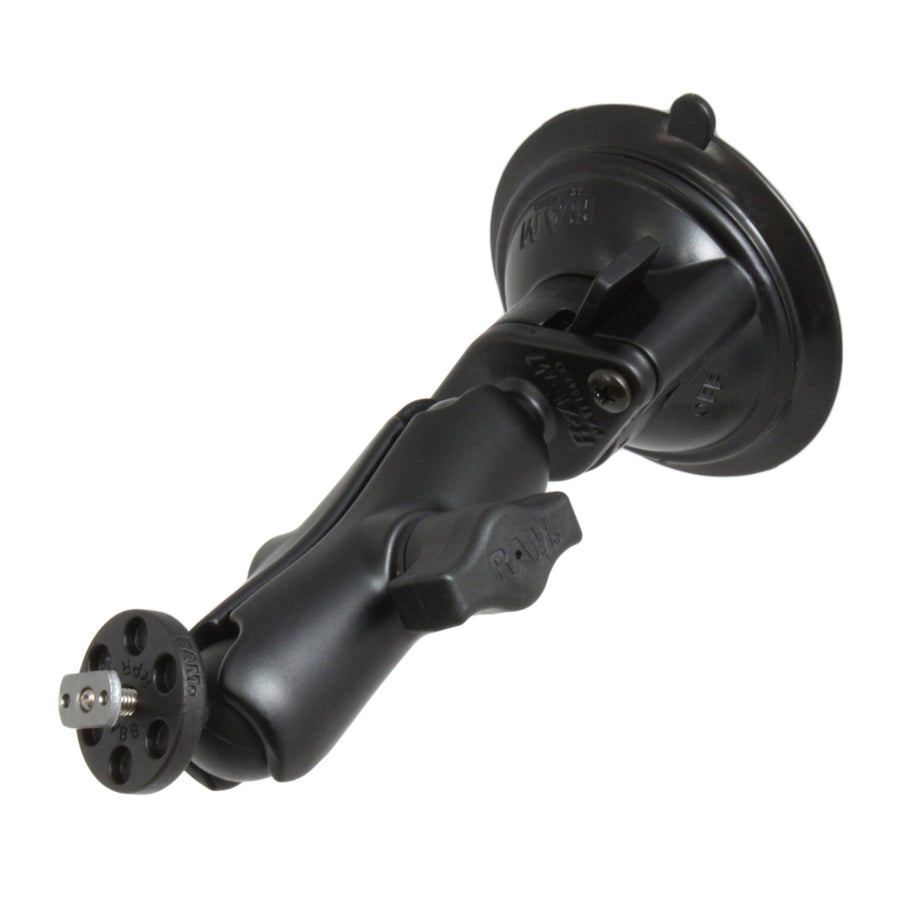

Overview	The RAM-B-166-375U consists of a medium length B-size arm with our 3.3" diameter suction cup base, and Track Ball^™ Flat Panel Adapter.

Specifications
hardware included	Assembly Hardware (1) #10-32 x 1.5" Flat Weld Bolt (1) #10-32 Nylock Nut
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.61 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

RAM<sup>®</sup> Twist-Lock<sup>™</sup> Suction Cup Mount with Flat Panel Adapter

Questions about our products? Email us for support.

Patented

RAM^® Twist-Lock^™ Suction Cup Mount with Flat Panel Adapter

Part#: RAM-B-166-375U

UPC: 793442930034

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$51.49
