B Size
Medium Arm
RAM® Twist-Lock™ Suction Cup Double Ball Mount with Round Plate - Medium
B Size
Medium Arm
$48.99
Overview

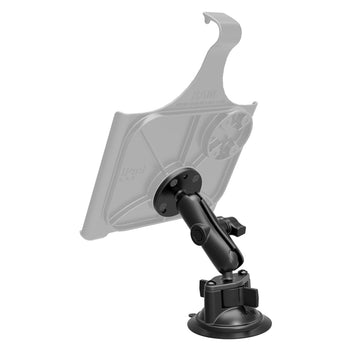

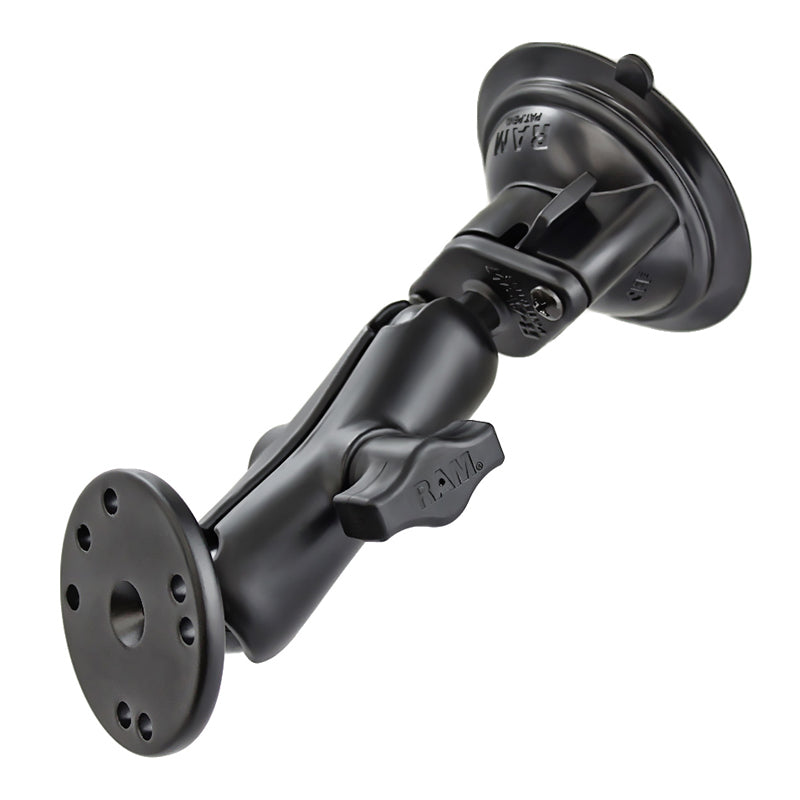

The RAM-B-166-202U consists of a 3.3" suction cup twist lock base, STANDARD length double socket arm and round base adapter that contains the universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.
Features

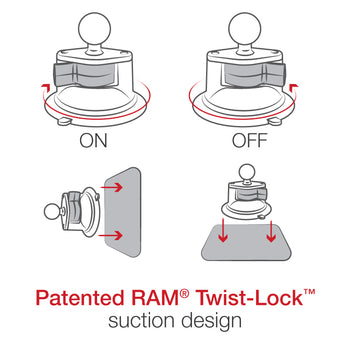

- RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
- Includes B size medium length RAM® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
hardware included:
Assembly Hardware

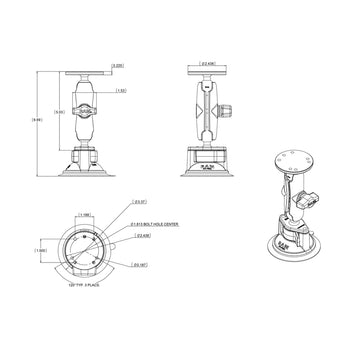

product dimensions:
Overall Height: 6.69"
suction size:
3.3" Diameter
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.7 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
