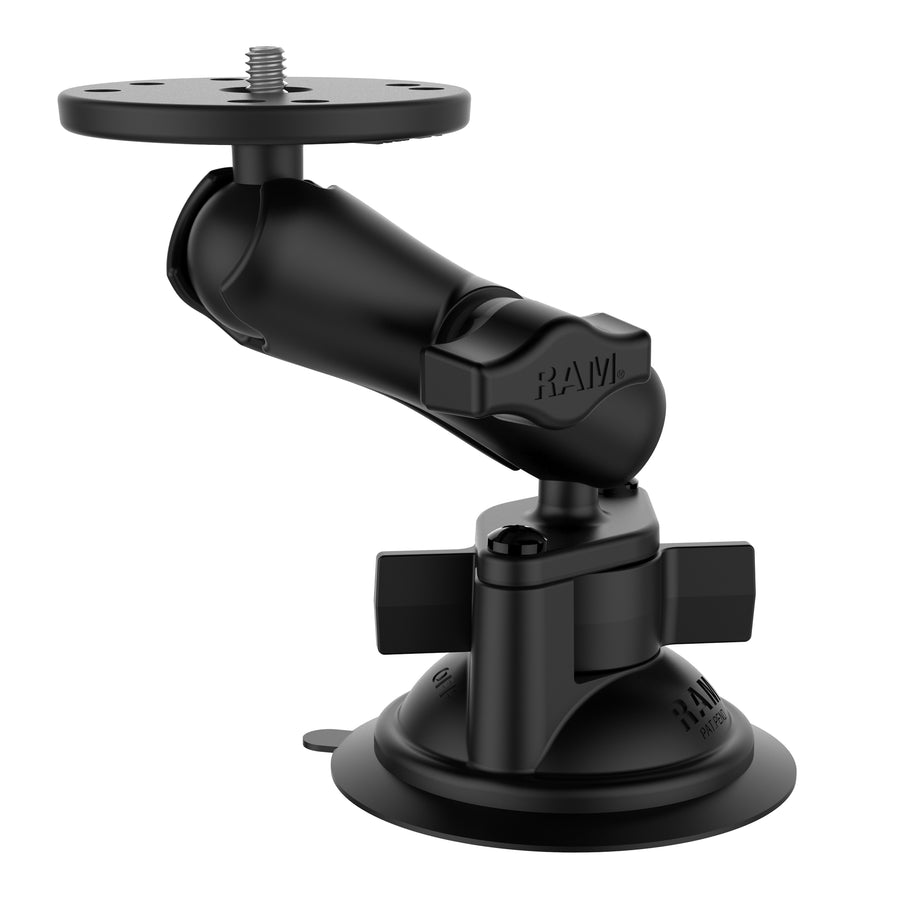

RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
$53.99
Single Suction

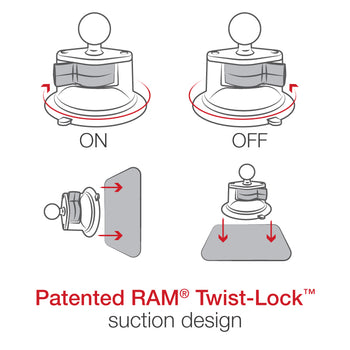

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
Overview
The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
hardware included
Assembly Hardware
product dimensions
Overall Height: 6.69"
suction size
3.3" Diameter
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
thread pitch
1/4"-20 x .25"
plate size
2.5" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.67 lb
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
