RAM® Handlebar U-Bolt Double Ball Mount for Lowrance Elite-5 + More
Part #: RAM-B-149Z-LO11-NAV1 UPC: 793442939341 Patented

Product Information

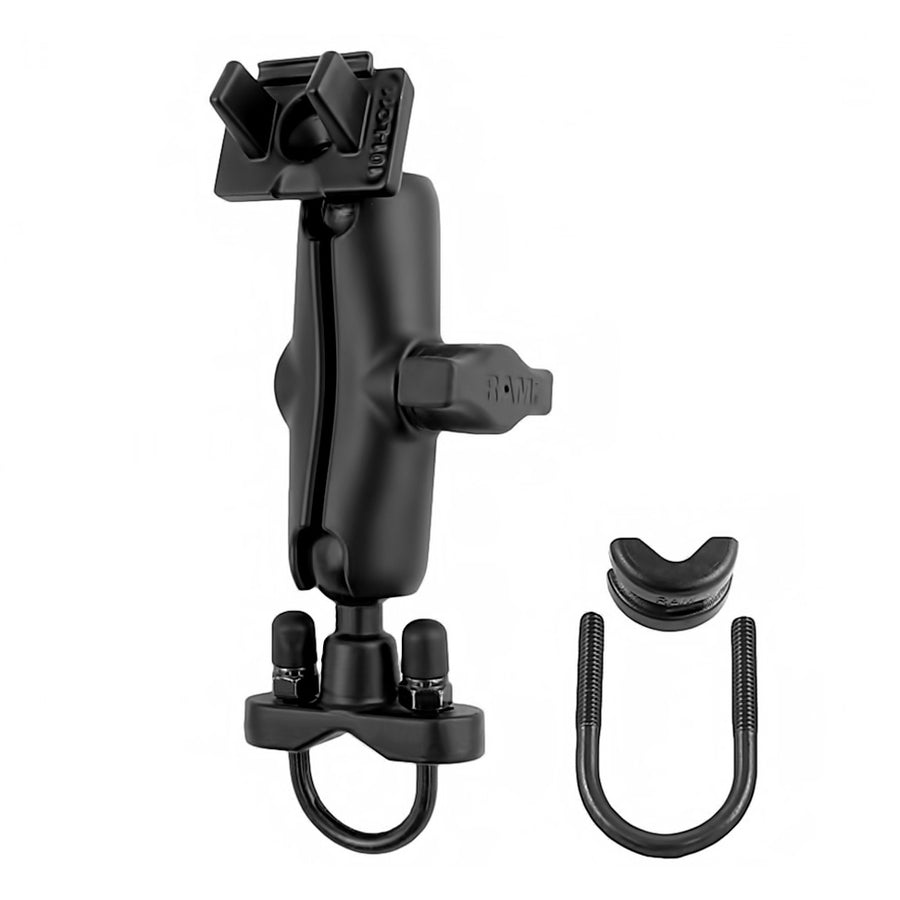

Overview	The RAM-B-149Z-LO11-NAV1 includes a B size 1" diameter rubber ball and adapter that inserts directly to the back of Lowrance Elite 4, Mark-4 and Hook-4 Fishfinders. The quick release mechanism in the Lowrance is fully functional, allowing you to remove or transfer your Fishfinder in seconds. Also included is a zinc coated metal u-bolt that accommodates rails from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".

Product Information

Overview

The RAM-B-149Z-LO11-NAV1 includes a B size 1" diameter rubber ball and adapter that inserts directly to the back of Lowrance Elite 4, Mark-4 and Hook-4 Fishfinders. The quick release mechanism in the Lowrance is fully functional, allowing you to remove or transfer your Fishfinder in seconds. Also included is a zinc coated metal u-bolt that accommodates rails from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".

Specifications
hardware included	(1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Retail Bag
Weight	0.67 lb
Additional Information	This product is not compatible with the standard Lowrance Elite-7.

RAM® Handlebar U-Bolt Double Ball Mount for Lowrance Elite-5 + More

Questions about our products? Email us for support.

Patented

RAM® Handlebar U-Bolt Double Ball Mount for Lowrance Elite-5 + More

Part#: RAM-B-149Z-LO11-NAV1

UPC: 793442939341

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$53.99
