RAM® Handlebar U-Bolt Mount for Garmin Approach and Dakota 10 & 20
Part #: RAM-B-149Z-GA36 UPC: 793442930508 Patented & Pats. Pend.

Product Information

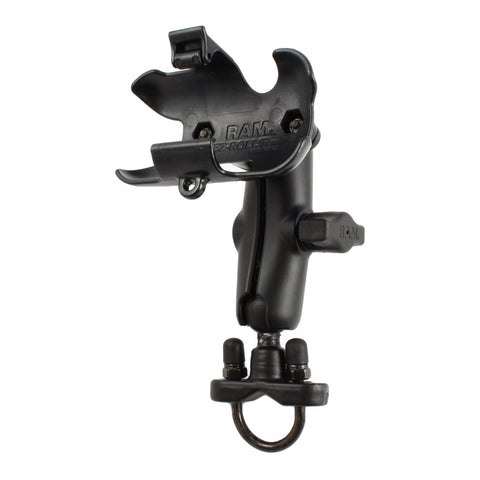

Overview	The RAM-B-149Z-GA36 consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our form-fitting cradle for Garmin Approach G3 and Dakota 10 & 20.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	0.68 lb

RAM® Handlebar U-Bolt Mount for Garmin Approach and Dakota 10 & 20

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Handlebar U-Bolt Mount for Garmin Approach and Dakota 10 & 20

Part#: RAM-B-149Z-GA36

UPC: 793442930508

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

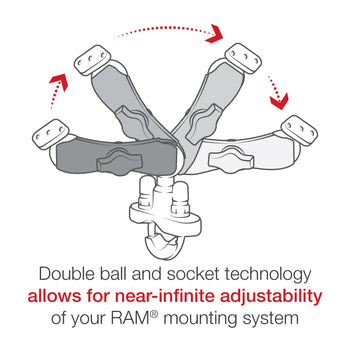

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
