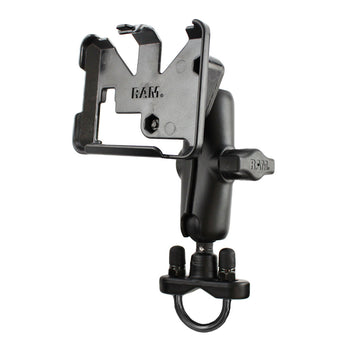

RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 200 + More
$54.49
U-Bolt Rail Mount
The RAM-B-149Z-GA24U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength cradle for the Garmin nuvi 200 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin nuvi mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 200 + More
Overview

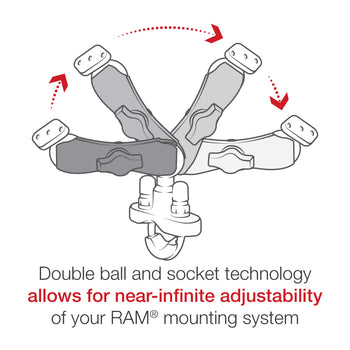

The RAM-B-149Z-GA24U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength cradle for the Garmin nuvi 200 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin nuvi mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
hardware included
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.68 lb
