RAM® U-Bolt Double Ball Mount for Garmin eTrex Legend Color + More
Part #: RAM-B-149Z-GA16U UPC: 793442000812 Patented

Product Information

Overview

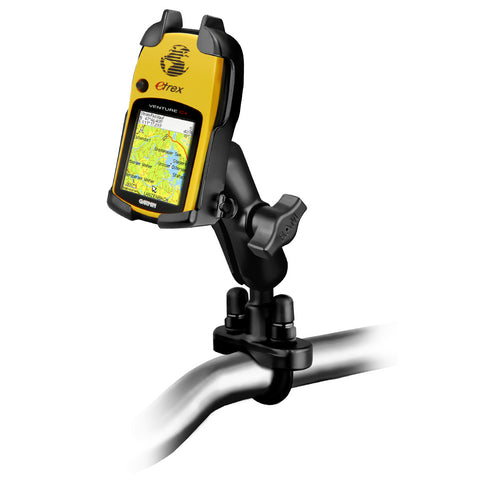

The RAM-B-149Z-GA16U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin eTrex. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Garmin eTrex mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.65 lb

RAM® U-Bolt Double Ball Mount for Garmin eTrex Legend Color + More

RAM® U-Bolt Double Ball Mount for Garmin eTrex Legend Color + More

RAM® U-Bolt Double Ball Mount for Garmin eTrex Legend Color + More

Patented

RAM® U-Bolt Double Ball Mount for Garmin eTrex Legend Color + More

Part#: RAM-B-149Z-GA16U

UPC: 793442000812

Ball Size
Arm Sizes

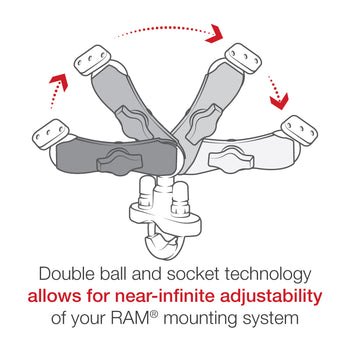

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
