RAM® U-Bolt Double Ball Mount for Garmin GPSMAP 76 & 96 Series - Medium
Part #: RAM-B-149Z-GA14U UPC: 793442908859 Patented

Product Information

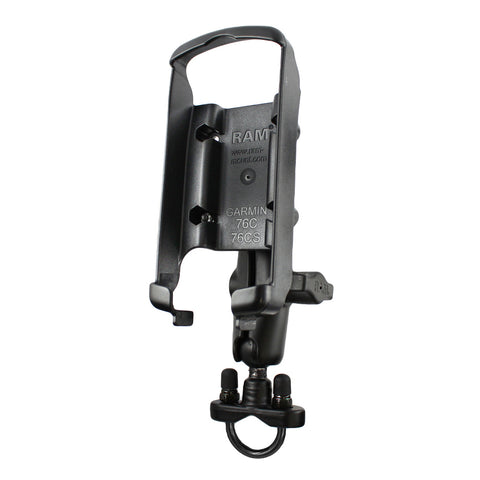

Overview	The RAM-B-149Z-GA14U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

Product Information

Overview

The RAM-B-149Z-GA14U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.68 lb

RAM® U-Bolt Double Ball Mount for Garmin GPSMAP 76 & 96 Series - Medium

Questions about our products? Email us for support.

Patented

RAM® U-Bolt Double Ball Mount for Garmin GPSMAP 76 & 96 Series - Medium

Part#: RAM-B-149Z-GA14U

UPC: 793442908859

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

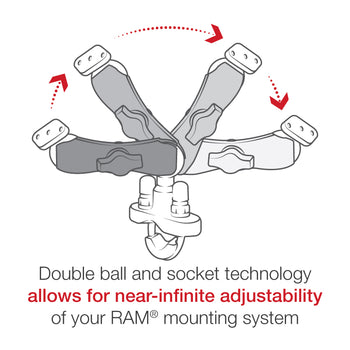

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
