$53.99
Long Arm, AMPS Plate

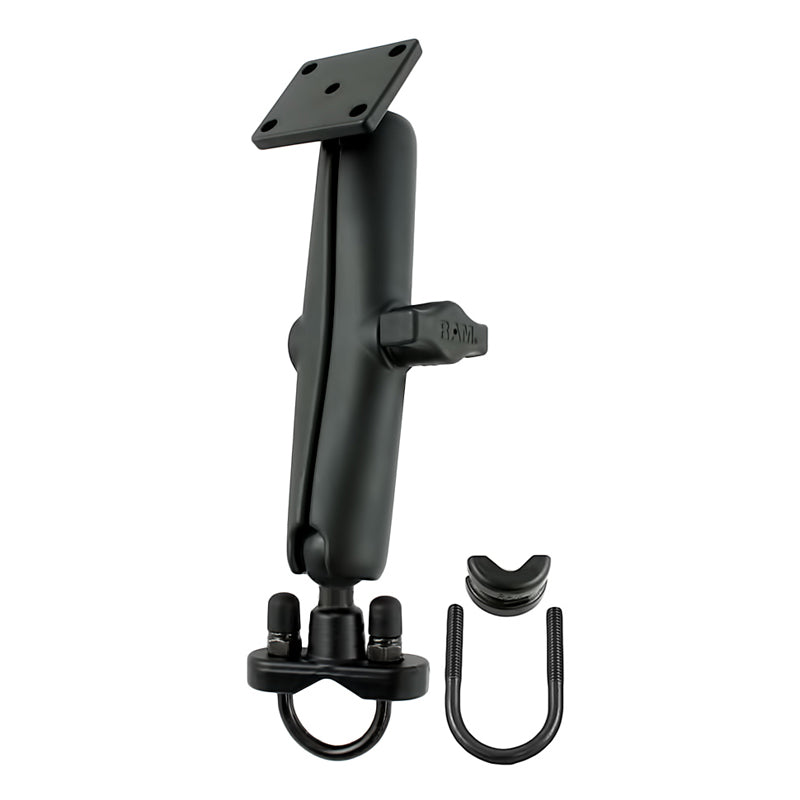

RAM® Handlebar U-Bolt Double Ball Mount with Rectangle AMPS Plate
Part#:RAM-B-149Z-C-347U UPC:793442939594 Patented
The RAM-B-149Z-C-347U consists of a zinc coated u-bolt base, LONG double socket arm and square adapter base that contains the universal AMPS hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The square adapter base contains four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

5.31"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.87 lb

Components

RAM® Ball Adapter with AMPS Plate - B Size RAM-B-347U $10.49
RAM® Double Socket Arm - B Size Long RAM-B-201U-C $28.49
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU $19.99
