Overview

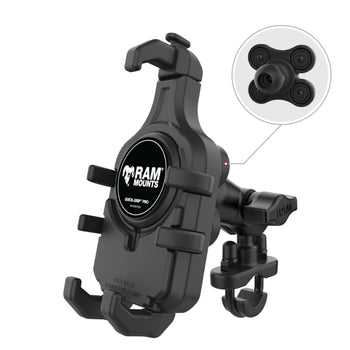

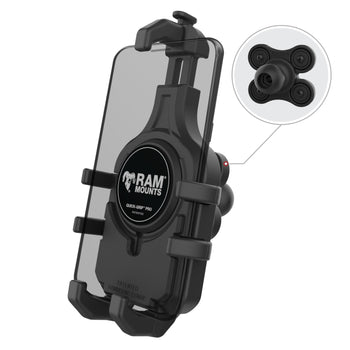

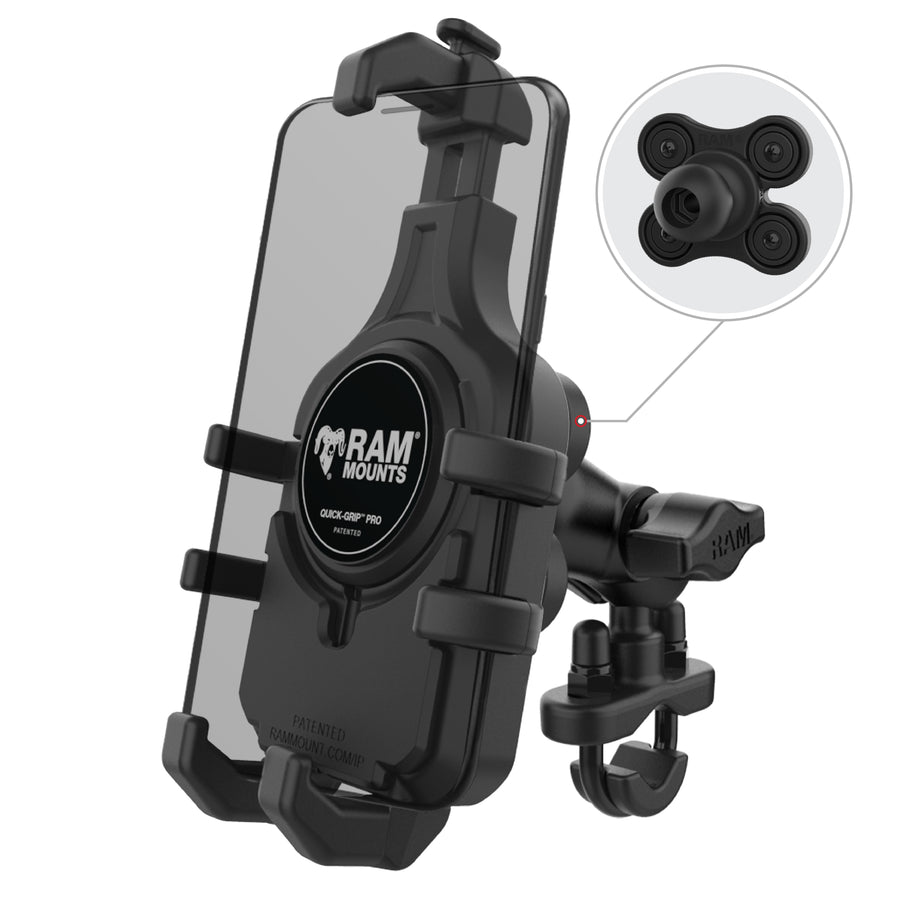

The RAM® Quick-Grip™ Pro Vibration Damping Phone Mount with U-Bolt Base (RAM-B-149Z-A-PD5VU) is an ideal handlebar solution featuring the next evolution of the RAM® Quick-Grip™ series with an integrated vibration damper. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size pin-lock ball. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

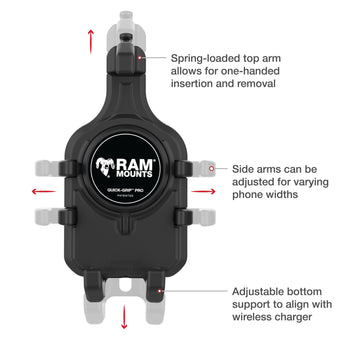

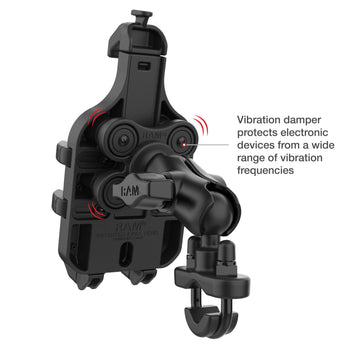

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber and integration vibration damper; easily insert and remove your phone with one hand

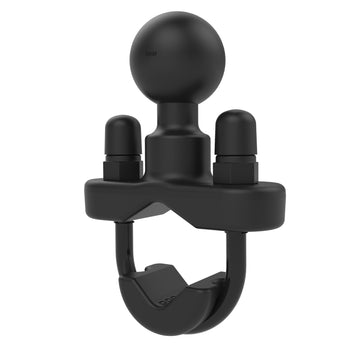

- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

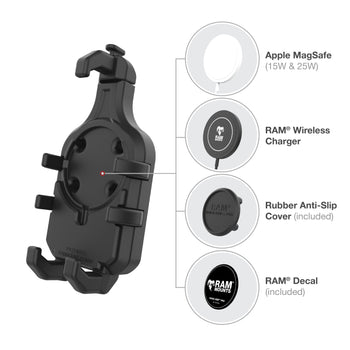

- Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
- Comes with optional device tether for open cockpit environments
- Backed by a lifetime warranty

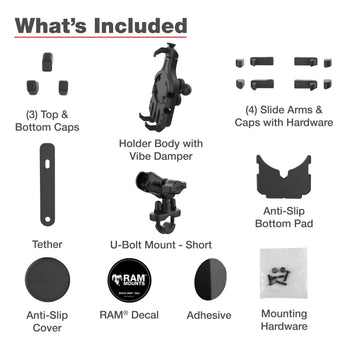

hardware included:
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
clamp range:
.5" - 1.25" diameter
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Additional Information:
A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
