Overview

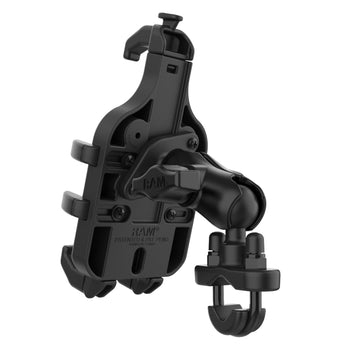

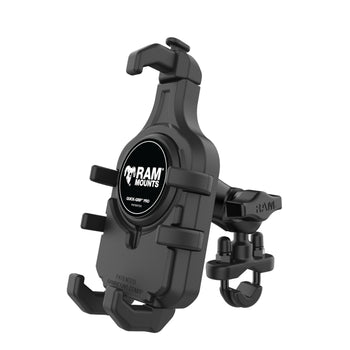

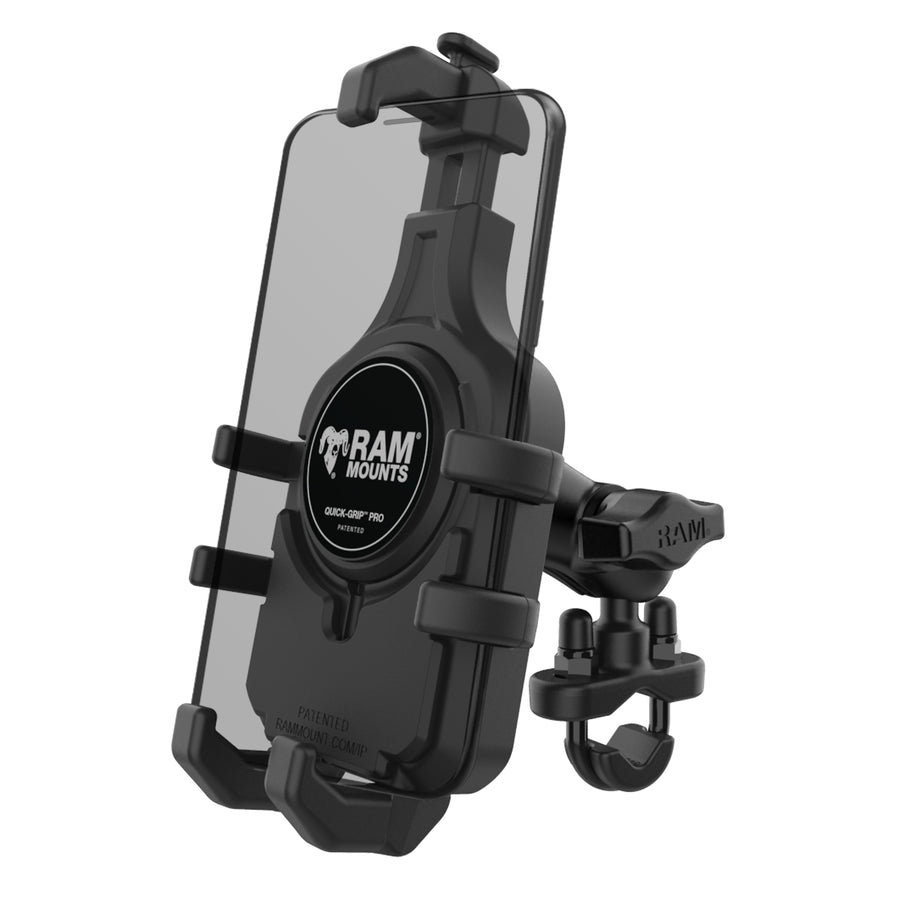

The RAM® Quick-Grip™ Pro Phone Mount with Handlebar U-Bolt Base - Short (RAM-B-149Z-A-PD5U) is an ideal handlbar solution featuring the next evolution of the RAM® Quick-Grip™ series. The phone holder is re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It also features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

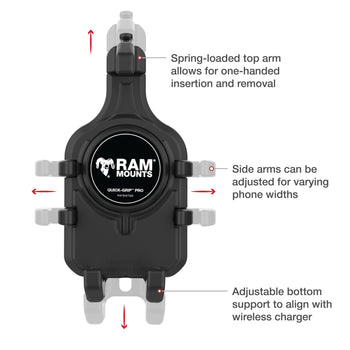

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

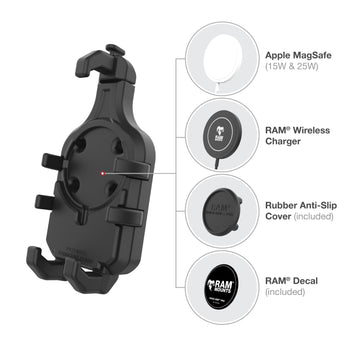

- Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
- Comes with optional device tether for open cockpit environments
- Backed by a lifetime warranty

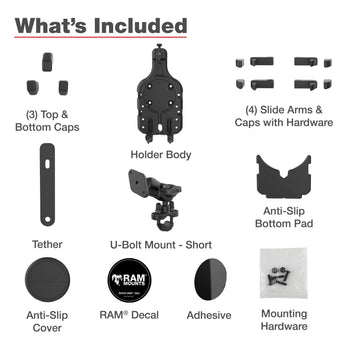

hardware included:
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
clamp range:
.5" - 1.25" diameter
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.95 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
