RAM® Handlebar U-Bolt Double Ball Mount for Magellan eXplorist GC + More
Part #: RAM-B-149Z-A-MA15U UPC: 793442950537 Patented & Pats. Pend.

Product Information

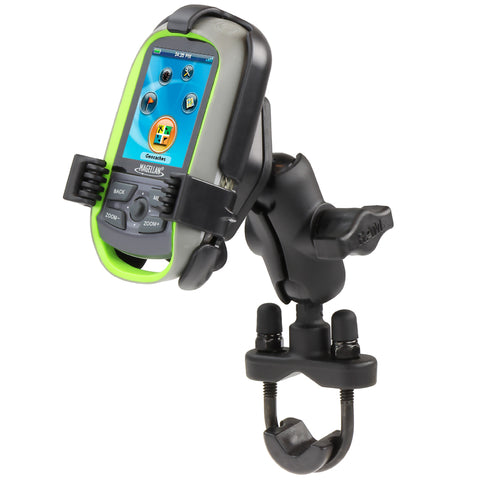

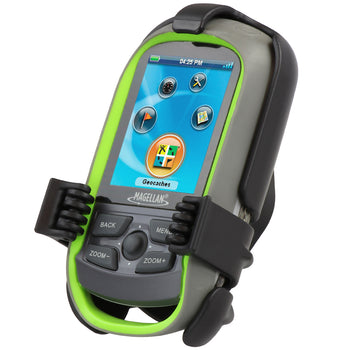

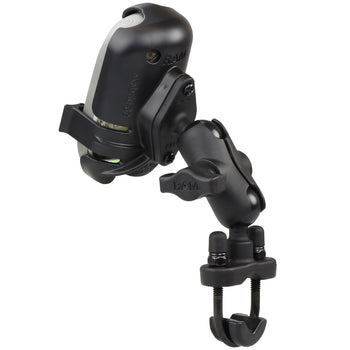

Overview	The RAM-B-149Z-A-MA15U consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with a form-fit cradle for the Magellan eXplorist GC/110/310/350H series. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". Compatible with: Magellan eXplorist GC, Magellan eXplorist 110, Magellan eXplorist 310, and Magellan eXplorist 350H.

Product Information

Overview

The RAM-B-149Z-A-MA15U consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with a form-fit cradle for the Magellan eXplorist GC/110/310/350H series. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". Compatible with: Magellan eXplorist GC, Magellan eXplorist 110, Magellan eXplorist 310, and Magellan eXplorist 350H.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.83 lb
