RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices
$121.99
Roll Bar Mount
RAM UTV/ATV strap mount with large size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The strap base accommodates rails from 40mm (Min) to 80mm (Max) in diameter.
RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices
Overview
RAM UTV/ATV strap mount with large size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The strap base accommodates rails from 40mm (Min) to 80mm (Max) in diameter.

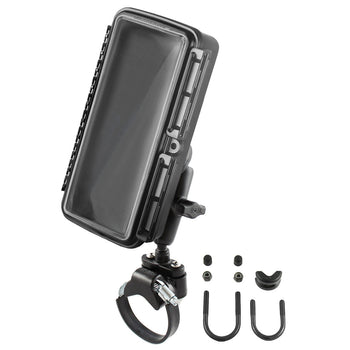

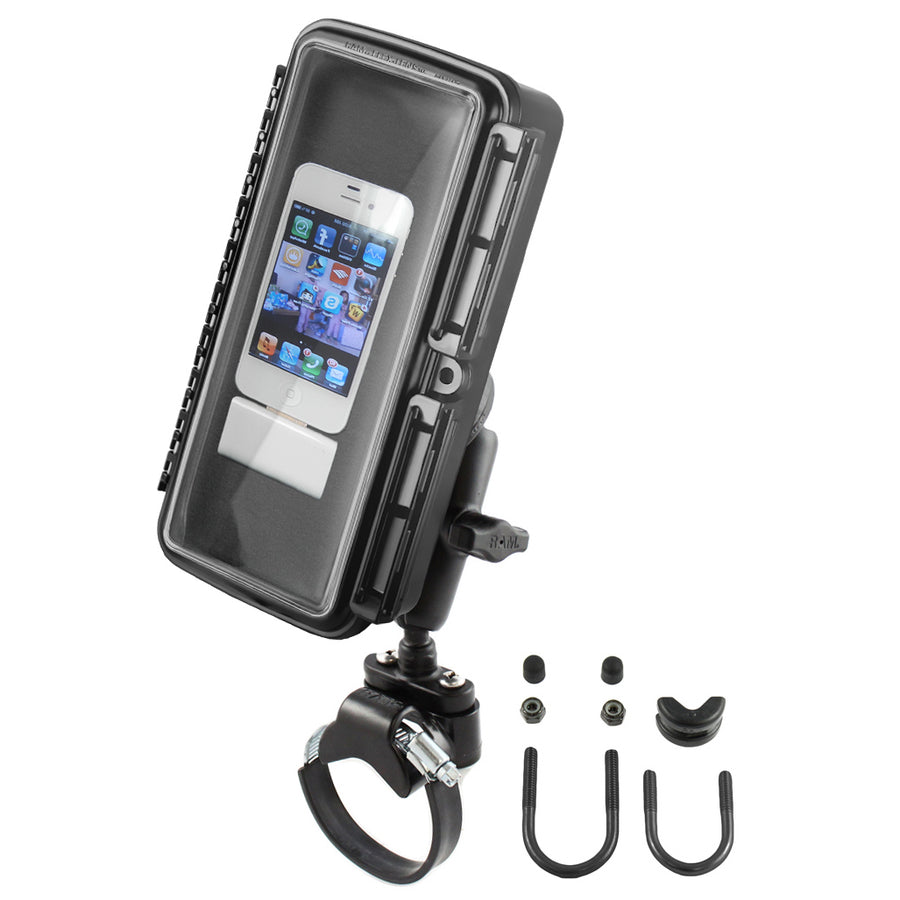

hardware included
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
internal dimensions
Width: 3.5"
Height: 8.43"
Depth: 2.25"
clamp range
U-Bolt: .5" - 1.25" diameter

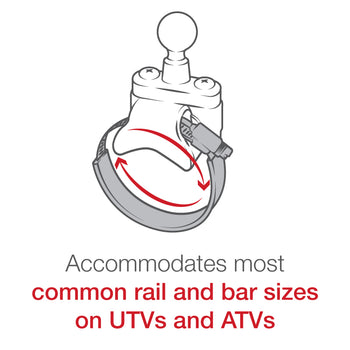

Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Retail Bag
Weight
1.89 lb
