Overview

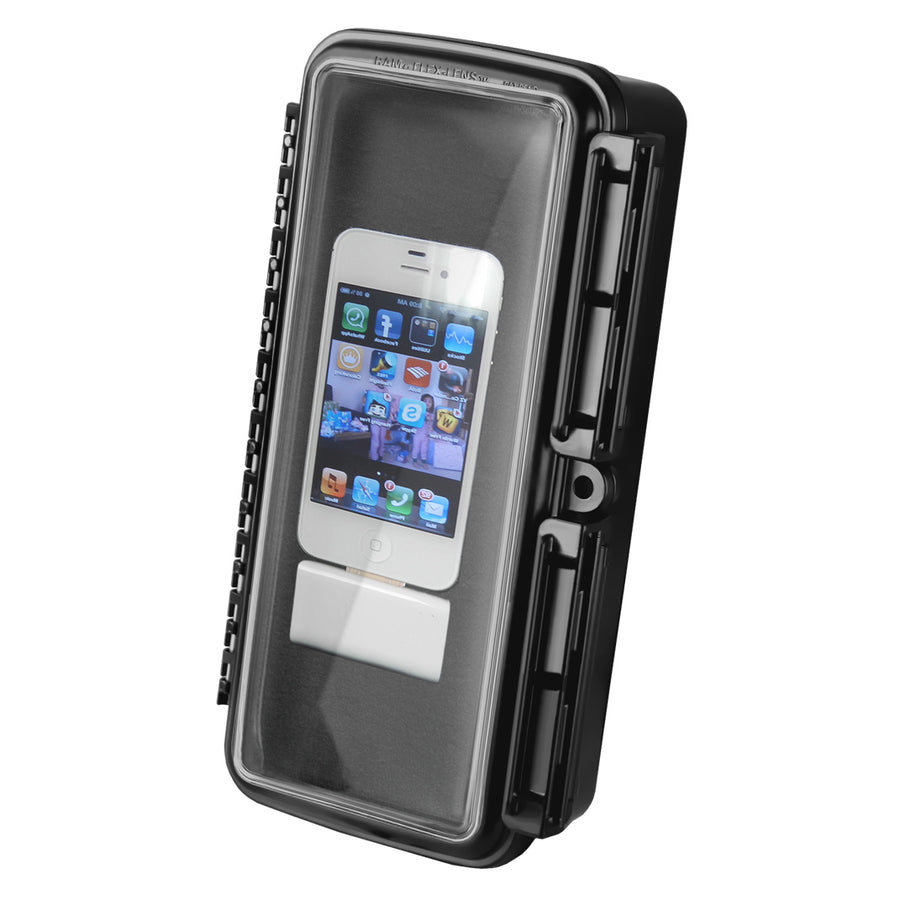

RAM AQUA BOX® cases provide sealed enclosure and protection for your handheld devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The AMPS hole pattern on the back of the box allows this enclosure to be attached to a multitude of RAM mounting bases and kits. Ideally suited to Motorcycles and ATV’s, keep your portable devices safe, dry, and accessible. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
hardware included:
(3) Foam Inserts
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
internal dimensions:
Width: 3.5"
Height: 8.43"
Depth: 2.25"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.85 lb
Questions & Answers
Have a Question?
-
Will this fit an S10+ with the juggernaut galaxy case?
Yes, that device will fit as long as it's under these three dimensions:
Width: 3.5"
Height: 8.43"
Depth: 2.25" -
Does the Aqua Box Large Sealed Enclosure fit the iPhone 12 Pro Max? Thank you.
Yes, the RAM-HOL-AQ1U will accommodate a device with the dimensions of an iPhone 12 Pro Max.
-
Is there a charging port? Or room for a charger pack inside?
There is a small knock out in the back/bottom of the RAM-HOL-AQ1U that you can run a charging cable through, but not a dedicated port specifically for that purpose. The Aqua Boxes are not vented and heat may be an issue if you're able to fit a secondary or backup battery into the holder. If you have questions about a specific phone or battery, please reach out to support@rammount.com and our support team can provide answers to compatibility questions for specific devices.
-
Will a Garmin Drive 60 LM fit in this case. It has a 6” screen. Thank you
No, a Garmin Drive 60 LM is .2" too wide to fit in a RAM-HOL-AQ1U.
