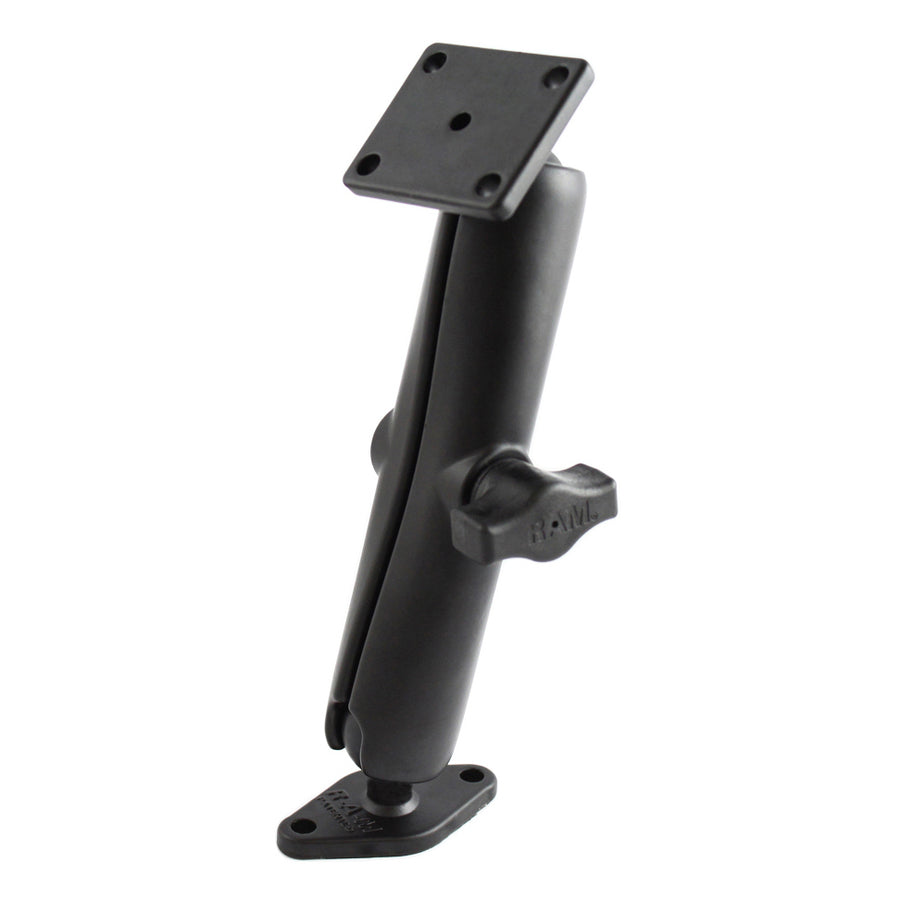

RAM® Double Ball Mount with 2-Hole & 4-Hole AMPS Plates - Long

Part#: RAM-B-140U-C
UPC: 793442909917

Kit Components

Previous Slide Next Slide
$46.49

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Long arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" — this product 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A

Overview

The RAM-B-141U-A consists of a Long double socket arm and two 2" X 1.7" balls bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AMPS hole pattern on each plate will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

product dimensions:

Overall Height: 7.3125"

socket to socket length:

5.31"

hole pattern:

Diamond Plate: 2-Hole AMPS: 1.912"

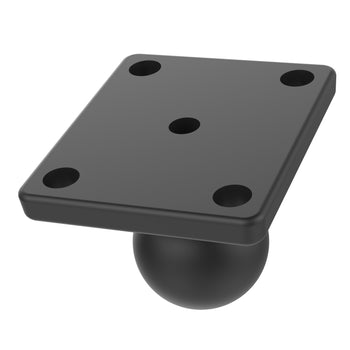

Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.72 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Drawing File: Diamond Ball Plate
