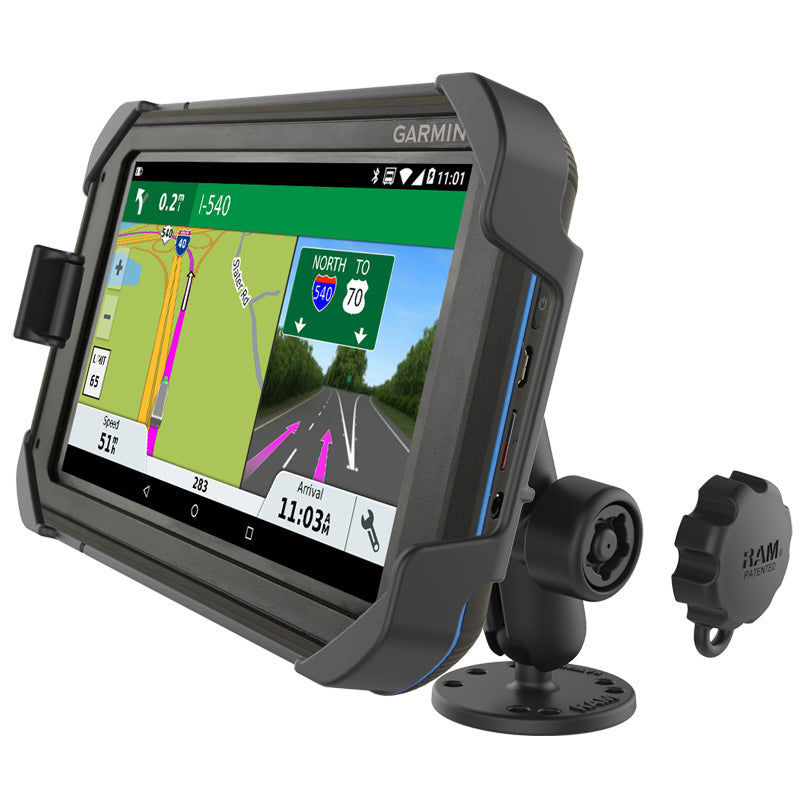

RAM^® EZ-Roll'r^™ Drill-Down Mount for Garmin Fleet 770, Overlander + More
Part #: RAM-B-138L-GA75LU UPC: 793442956171 Patented & Pats. Pend. Features Form-fit cradle designed specifically for select Garmin devices secures your GPS while keeping all buttons and the power port fully accessible Includes 2.5" round base with B size 1" rubber ball, locking medium length B size double socket arm, and diamond ball base that attaches to the cradle Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® EZ-Roll'r^™ Drill-Down Mount for Garmin Fleet 770, Overlander + More

Part #: RAM-B-138L-GA75LU UPC: 793442956171 Patented & Pats. Pend.

Features

Form-fit cradle designed specifically for select Garmin devices secures your GPS while keeping all buttons and the power port fully accessible
Includes 2.5" round base with B size 1" rubber ball, locking medium length B size double socket arm, and diamond ball base that attaches to the cradle
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> EZ-Roll'r<sup>™</sup> Drill-Down Mount for Garmin Fleet 770, Overlander + More

Product Information
Overview	The EZ-Roll’r^™ cradle for the Garmin Fleet 770/780/790 provides a secure fit with quick and easy one-handed attachment and removal of the device from the cradle. With the included cradle lock as a theft deterrent, keep the Garmin Fleet protected when left inside the vehicle. This mounting kit includes a 2.5” round base with AMPS hole pattern, locking double socket arm and diamond base adapter that connects to the EZ-Roll’r cradle.

Product Information

Overview

The EZ-Roll’r^™ cradle for the Garmin Fleet 770/780/790 provides a secure fit with quick and easy one-handed attachment and removal of the device from the cradle. With the included cradle lock as a theft deterrent, keep the Garmin Fleet protected when left inside the vehicle. This mounting kit includes a 2.5” round base with AMPS hole pattern, locking double socket arm and diamond base adapter that connects to the EZ-Roll’r cradle.

Specifications
hardware included	Assembly Hardware (1) RAM Pin-Lock Security Key
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.9 lb
Additional Information	This cradle is not compatible with the larger powered puck that comes with the Garmin Overlander.

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® EZ-Roll'r^™ Drill-Down Mount for Garmin Fleet 770, Overlander + More

Part#: RAM-B-138L-GA75LU

UPC: 793442956171

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$67.99

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Form-fit cradle designed specifically for select Garmin devices secures your GPS while keeping all buttons and the power port fully accessible
Includes 2.5" round base with B size 1" rubber ball, locking medium length B size double socket arm, and diamond ball base that attaches to the cradle
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) RAM Pin-Lock Security Key

socket to socket length:

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.9 lb

Additional Information:

This cradle is not compatible with the larger powered puck that comes with the Garmin Overlander.
