RAM® EZ-Roll'r™ Dock & Dashboard Mount for Sonim XP5plus & XP5plus 5G

Part#: RAM-B-138-SNM3PL-V7B1U
UPC: 793442036637

Compatibility

Sonim

XP5plus XP5plus 5G

Kit Components

Previous Slide Next Slide
$230.49

Overview

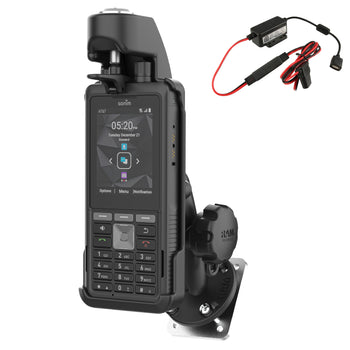

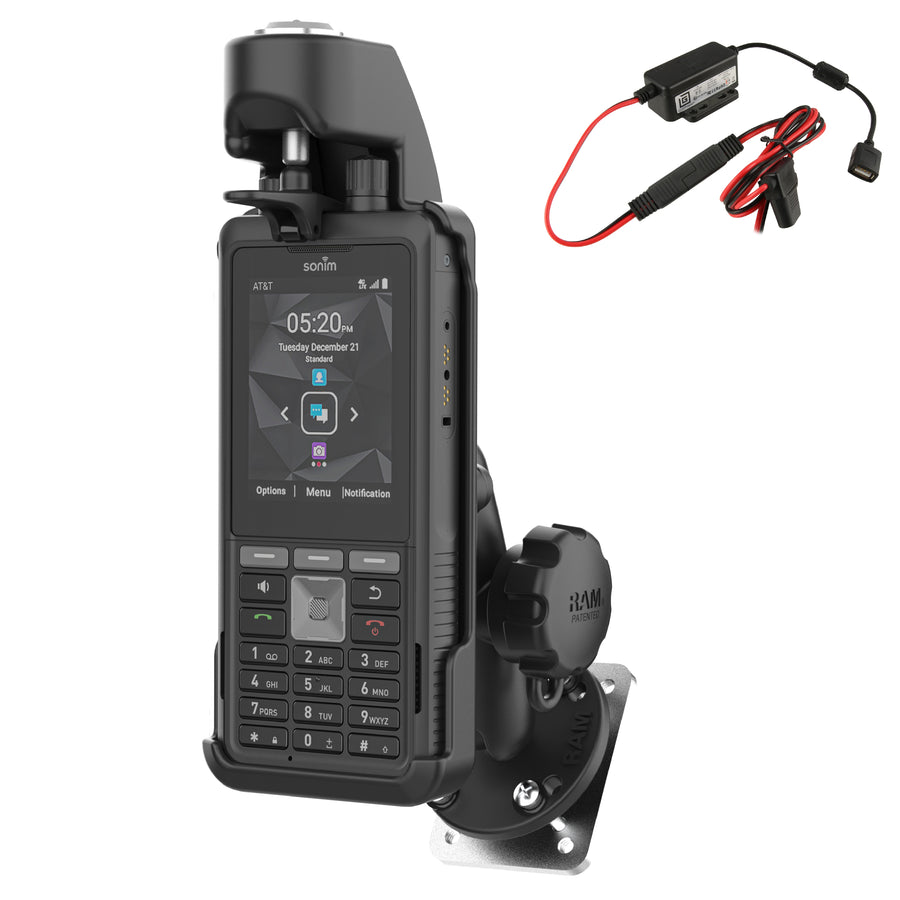

The RAM® EZ-Roll'r™ Dock & Dashboard Mount for Sonim XP5plus & XP5plus 5G (RAM-B-138-SNM3PL-V7B1U) is a turn-key mounting solution that includes everything you need to mount the Sonim XP5plus. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP5plus, B-size double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.

Features

  • Bundle for Sonim XP5plus & XP5plus 5G includes a powered locking holder, hardwire charger, and mounting bracket for all-in-one communication

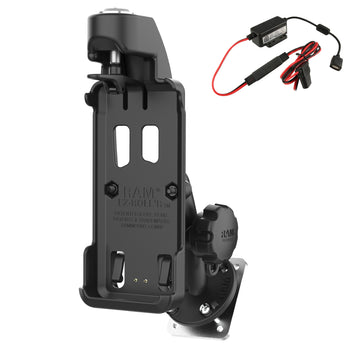

  • Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP5plus; provides charging through two integrated pogo pins and USB-A cable
  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

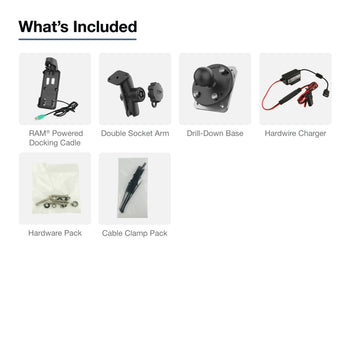

hardware included:

Assembly Hardware
(1) Key for Socket Arm
(2) Keys for Dock
(1) Hardwire Charger
(1) Cable Clamp Kit

socket to socket length:

3"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Warranty:

3 year warranty

Weight:

4.72 lb

Additional Information:

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Instructions for Modular Hardwire Charger
Q&A
Questions & Answers loading...
RAM® EZ-Roll'r™ Dock & Dashboard Mount for Sonim XP5plus & XP5plus 5G
$230.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
