GDS® Powered USB-C 2.0 Phone Dock with Drill-Down Double Ball Mount
Part #: RAM-B-138-GDS-DOCK-V1CPU UPC: 793442801778 Patent Pending Features Bundle includes spring-loaded RAM® Universal Vehicle Phone Dock, 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, and diamond adapter base Drill-down base mounts to any hard surface and is suitable for rough environments and vehicle dashboards Dock features GDS® Technology™ for charging capabilities via Type-C connector Backed by a 3-year warranty

Part #: RAM-B-138-GDS-DOCK-V1CPU UPC: 793442801778 Patent Pending

Features

Bundle includes spring-loaded RAM® Universal Vehicle Phone Dock, 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, and diamond adapter base
Drill-down base mounts to any hard surface and is suitable for rough environments and vehicle dashboards

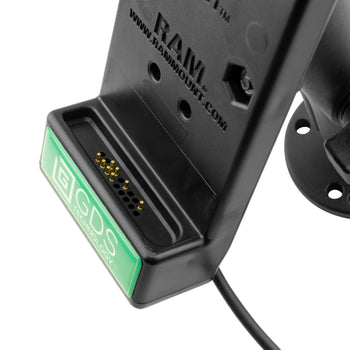

Dock features GDS® Technology™ for charging capabilities via Type-C connector
Backed by a 3-year warranty

GDS® Powered USB-C 2.0 Phone Dock with Drill-Down Double Ball Mount

Product Information

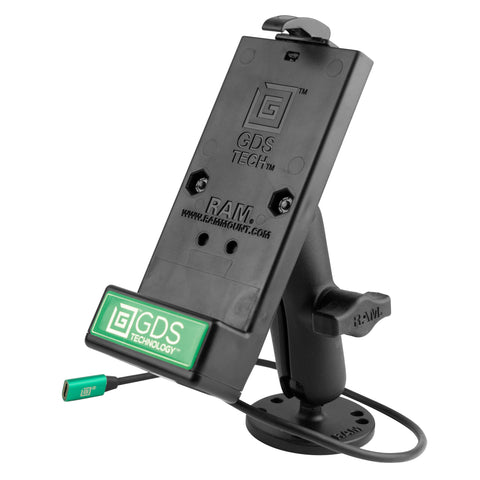

Overview	The RAM-B-138-GDS-DOCK-V1CPU consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base, and the RAM® Universal Vehicle Phone Dock with GDS® Technology™. This mount can drill down to any hard surface and is suitable for rough environments and vehicle dashboards. The adjustment points at both ends of the double socket arm allow for near-infinite adjustment and perfect viewing angles. The vehicle dock is a spring-loaded, quick-release cradle that offers a secure fit with easy access to the mounted phone or tablet and compatible with any phone or tablet wrapped in IntelliSkin®. The integrated GDS® Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.

Product Information

Overview

The RAM-B-138-GDS-DOCK-V1CPU consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base, and the RAM® Universal Vehicle Phone Dock with GDS® Technology™. This mount can drill down to any hard surface and is suitable for rough environments and vehicle dashboards. The adjustment points at both ends of the double socket arm allow for near-infinite adjustment and perfect viewing angles. The vehicle dock is a spring-loaded, quick-release cradle that offers a secure fit with easy access to the mounted phone or tablet and compatible with any phone or tablet wrapped in IntelliSkin®. The integrated GDS® Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.

Specifications
hardware included	Assembly Hardware
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
output voltage	Type-C Devices: 5V - 12V @ 3A max mUSB Devices: 5V @ 1.5A max
power output	15W
input connector	USB Type-C
Warranty	3 year warranty
Weight	0.93 lb

GDS® Powered USB Type-C Phone Dock with Drill-Down Double Ball Mount

Questions about our products? Email us for support.

Patent Pending

GDS® Powered USB-C 2.0 Phone Dock with Drill-Down Double Ball Mount

Part#: RAM-B-138-GDS-DOCK-V1CPU

UPC: 793442801778

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
