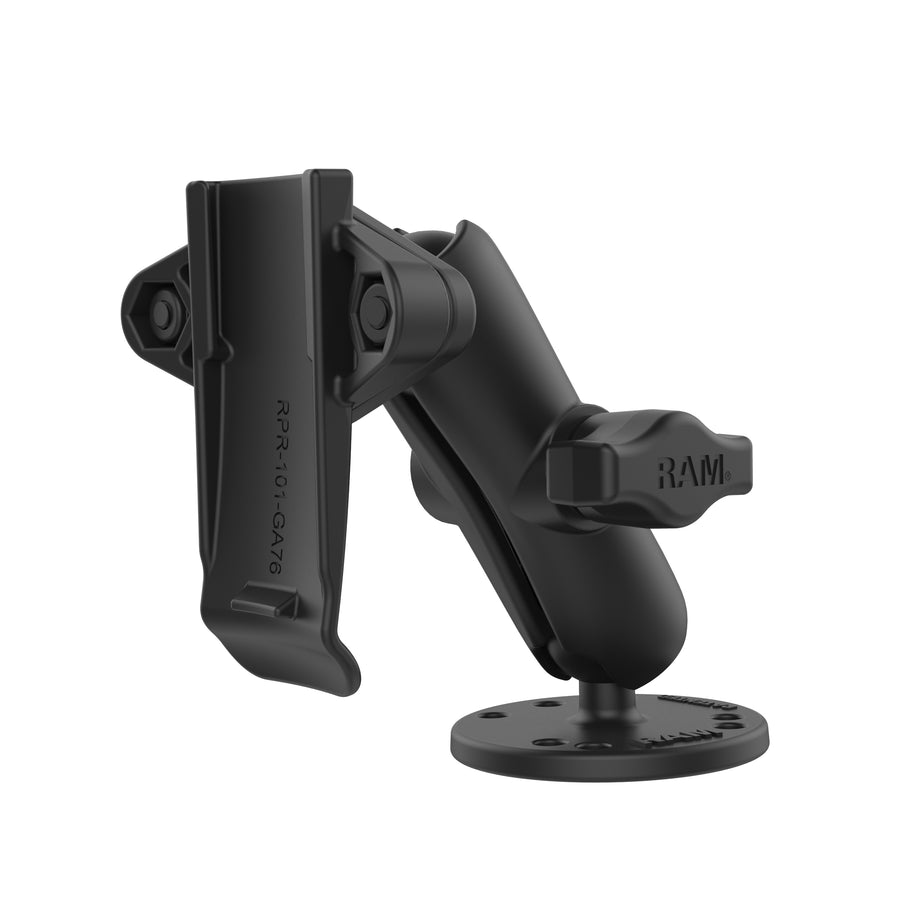

RAM® Drill-Down Mount with Garmin Spine Clip Holder
Part #: RAM-B-138-GA76U UPC: 793442012464 Patented Features Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, medium double socket arm and RAM® Drill-Down base Holder secures any Garmin handheld device with an integrated spine connection Drill-down round base contains universal AMPS hole pattern Backed by a lifetime warranty

Product Information
Overview	The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. This mount includes a 2.5" diameter round base with the universal AMPS hole pattern and a medium length RAM® double socket arm so you can drill down directly into your desired surface, or secure with sturdy hardware.

Specifications
hardware included	Assembly Hardware
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.57 lb

RAM® Drill-Down Mount with Garmin Spine Clip Holder

Patented

RAM® Drill-Down Mount with Garmin Spine Clip Holder

Name: RAM® Drill-Down Mount with Garmin Spine Clip Holder
Brand: RAM Mounts
SKU: RAM-B-138-GA76U
Price: 43.49 USD
Availability: InStock

Part#: RAM-B-138-GA76U

UPC: 793442012464

Ball Size
Arm Sizes

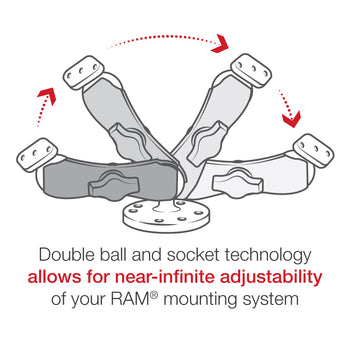

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
