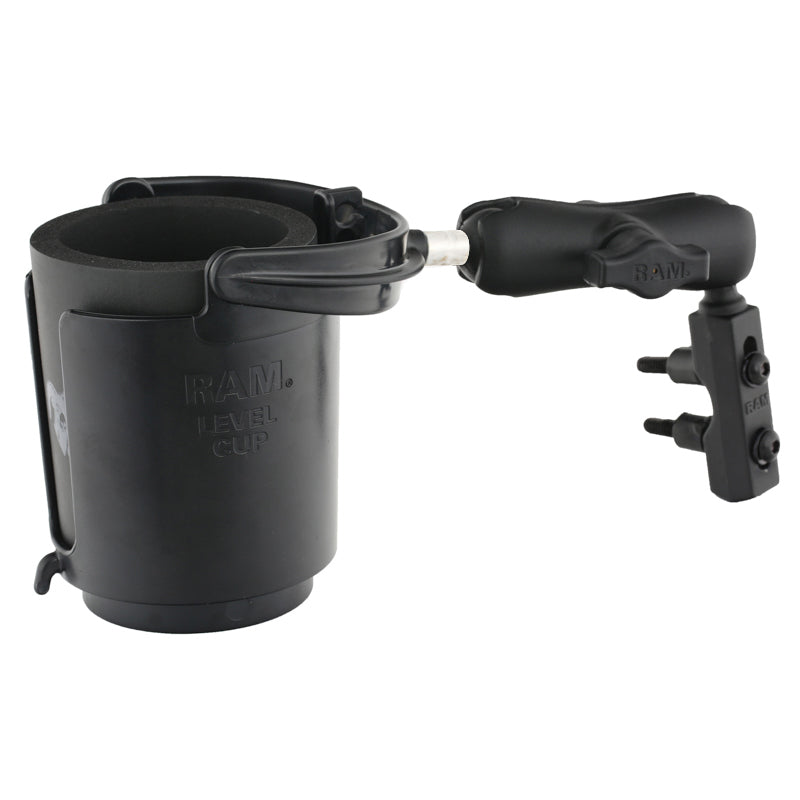

RAM® Level Cup™ 16oz Drink Holder Brake/Clutch Reservoir Mount
Part #: RAM-B-132-309U UPC: 793442913662 Patented

Product Information

Overview

The RAM® Level Cup™ is the perfect self-leveling, gyroscopic cup holder accessory for any vehicle including motorcycles, ATV’s, Big Rigs, and much more. Easily installed and positioned to keep your favorite beverage within reach, this gem even comes with a RAM can insulator. Take a corner as hard as you like, this holder is ready to ride. The integrated eyelet and hook provide an optional tethering function, securing any small or open container in any harsh environment. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". Compatible with any cups, cans, bottles or mugs ranging from 2.5” to 3.5” diameter.

Specifications
hardware included	(1) Koozie Insert (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
drink size	12-16 oz
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.08 lb

RAM® Level Cup™ 16oz Drink Holder Brake/Clutch Reservoir Mount

Patented

RAM® Level Cup™ 16oz Drink Holder Brake/Clutch Reservoir Mount

Name: RAM® Level Cup™ 16oz Drink Holder Brake/Clutch Reservoir Mount
Brand: RAM Mounts
SKU: RAM-B-132-309U
Price: 60.49 USD
Availability: InStock

Part#: RAM-B-132-309U

UPC: 793442913662

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
