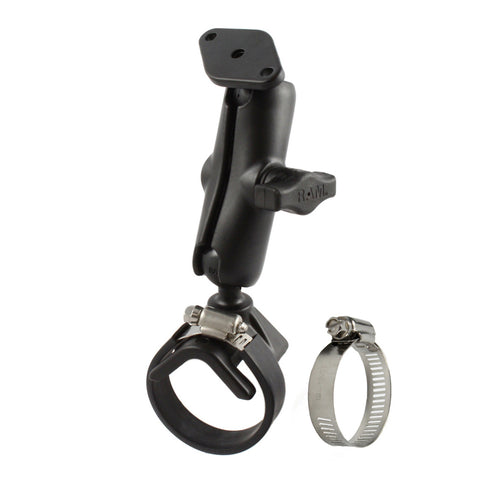

RAM® Double Ball Strap Hose Clamp Mount with Diamond Plate - Medium
$46.99
Medium Arm, Diamond Plate
The RAM-B-108U-GP1 consists of a medium length B-size arm with a 2.41" x 1.31" diamond plate with 2 hole AMPS pattern on one end and a strap clamp base for rails between 1" and 2.1" in diameter on the other.
RAM® Double Ball Strap Hose Clamp Mount with Diamond Plate - Medium
Overview
The RAM-B-108U-GP1 consists of a medium length B-size arm with a 2.41" x 1.31" diamond plate with 2 hole AMPS pattern on one end and a strap clamp base for rails between 1" and 2.1" in diameter on the other.
hardware included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range
1" - 2.1" diameter
socket to socket length
3"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.63 lb
