RAM^® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Short
Part #: RAM-B-108B-A-366U UPC: 793442931819

Product Information

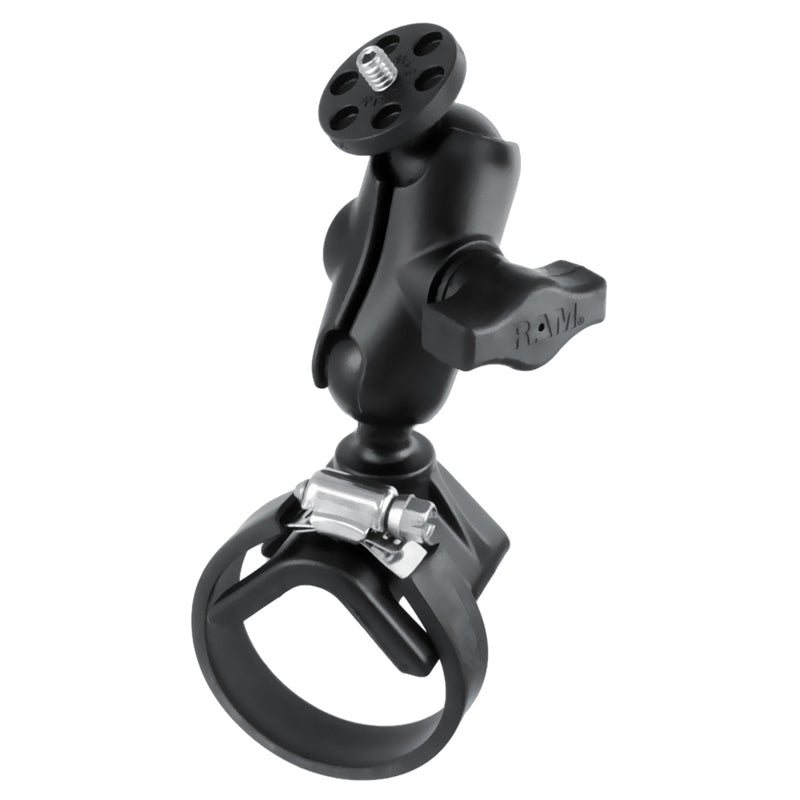

Overview	The RAM-B-108B-A-366U consists of a v-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded steel stud. The base accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

Product Information

Overview

The RAM-B-108B-A-366U consists of a v-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded steel stud. The base accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

Specifications
hardware included	(1) #20 Worm Drive Strap Clamp (1) #28 Worm Drive Strap Clamp (1) 6" Rubber Strip
clamp range	1" - 2.1" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.49 lb

RAM<sup>®</sup> Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Short

Questions about our products? Email us for support.

RAM^® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Short

Part#: RAM-B-108B-A-366U

UPC: 793442931819

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
