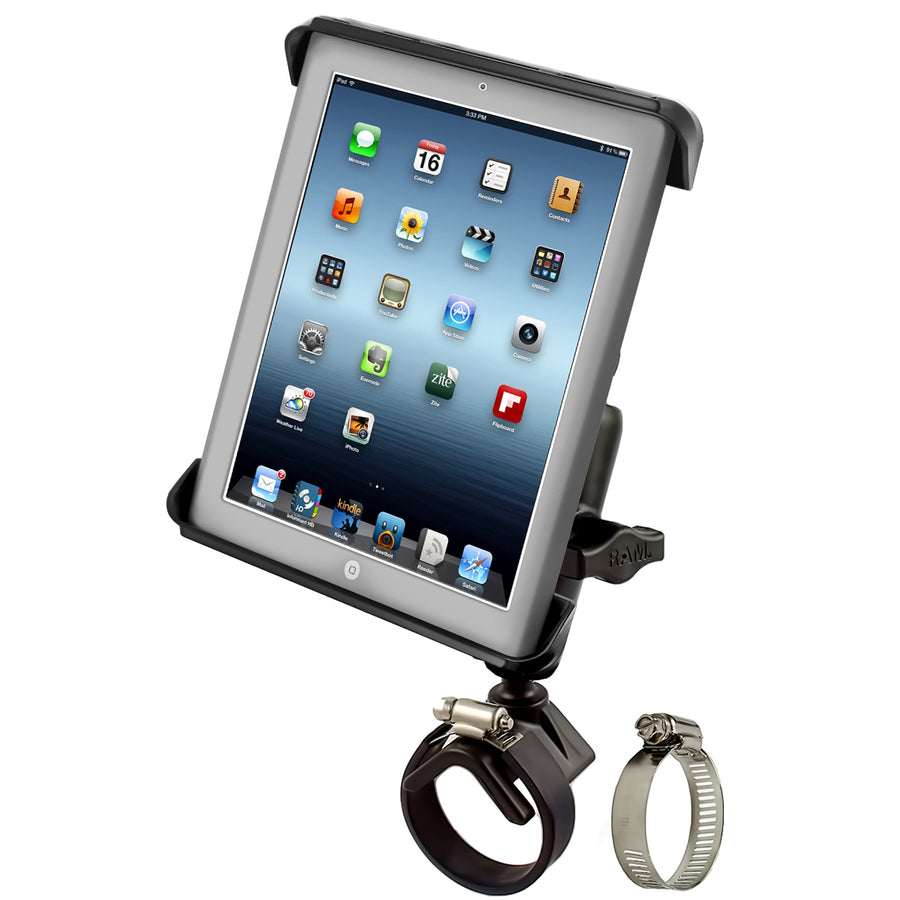

RAM^® Tab-Tite^™ Mount with Strap Hose Clamp Base for iPad Gen 1-4 + More
Part #: RAM-B-108-TAB3 UPC: 793442939310 Patented

Product Information
Overview	The RAM-B-108-TAB3 consists of a V-Shape base, metal clamp straps, double socket arm, round base adapter and Tab-Tite^™ universal clamping cradle. The V-Shape base accommodates rails from 1.0" to a maximum of 2.1" in diameter. The RAM-B-108-TAB3 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite^™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

Product Information

Overview

The RAM-B-108-TAB3 consists of a V-Shape base, metal clamp straps, double socket arm, round base adapter and Tab-Tite^™ universal clamping cradle. The V-Shape base accommodates rails from 1.0" to a maximum of 2.1" in diameter. The RAM-B-108-TAB3 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite^™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

Specifications
hardware included	Assembly Hardware (1) #20 Worm Drive Strap Clamp (1) #28 Worm Drive Strap Clamp (1) 6" Rubber Strip
holder dimensions	Height Range: 8.5" - 11.125" Width Range: 6.38" - 7.75" Depth Range: .13" - .56"
clamp range	1" - 2.1" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	1.48 lb

RAM<sup>®</sup> Tab-Tite<sup>™</sup> Mount with Strap Hose Clamp Base for iPad Gen 1-4 + More

Patented

RAM^® Tab-Tite^™ Mount with Strap Hose Clamp Base for iPad Gen 1-4 + More

Part#: RAM-B-108-TAB3

UPC: 793442939310

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
