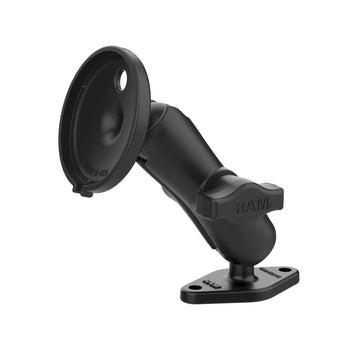

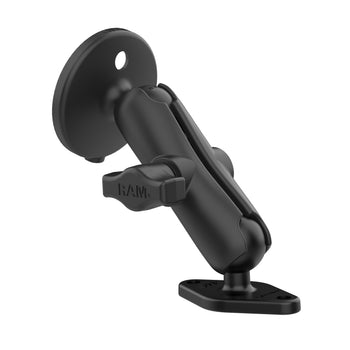

RAM® Drill-Down Mount for Apple MagSafe (2024+)
Part #: RAM-B-102-AP-MAG-1U UPC: 793442025648 Features Adapter designed for 25W MagSafe charging disk (not included) Includes B size medium length socket arm and diamond ball base featuring universal AMPS hole pattern for drill-down mounting Ball and socket technology allows for near-infinite adjustability Backed by a lifetime warranty

Product Information

Overview

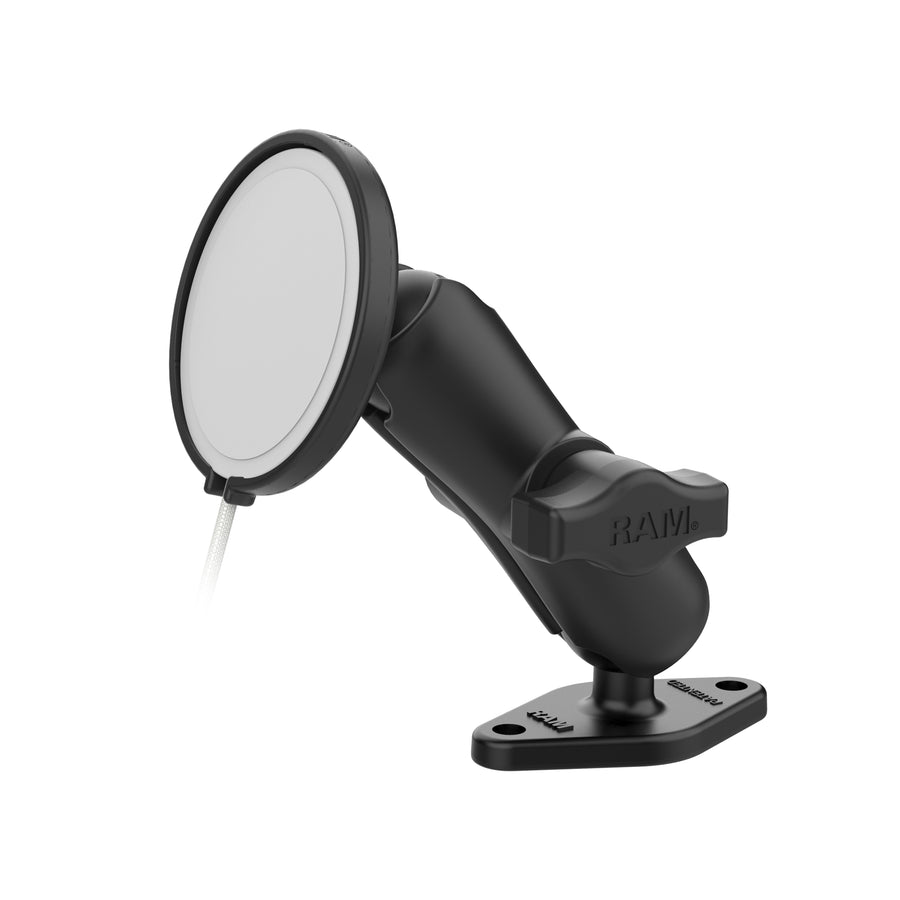

The RAM® Drill-Down Mount for Apple MagSafe® Charger (2024+) (RAM-B-102-AP-MAG-1U) is designed to integrate the official Apple MagSafe® Charger (2024+) into RAM® ball and socket mounting systems, providing a secure, reliable in-vehicle mounting solution. This adapter offers a snug, precise fit for the newer Apple MagSafe® charging puck, allowing compatible iPhone models to magnetically snap into place when properly aligned. This mounting kit includes a RAM® B size diamond ball base with 2-hole AMPS pattern and B size medium length socket arm, perfect for drill-down mounting in your vehicle. This product is compatible with the newer Apple MagSafe® Charger released in 2024 and later. It is not compatible with the original 2020 MagSafe® charging puck. Not sure which MagSafe® charger you have? If your charger cable is braided, it is a newer 2024+ MagSafe® Charger. If the cable is smooth with a soft rubber casing, it is the original 2020 MagSafe® Charger.

Specifications
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.44 lb

RAM® Drill-Down Mount for Apple MagSafe (2024+)

RAM® Drill-Down Mount for Apple MagSafe (2024+)

Name: RAM® Drill-Down Mount for Apple MagSafe (2024+)
Brand: RAM Mounts
SKU: RAM-B-102-AP-MAG-1U
Price: 35.49 USD
Availability: InStock

Part#: RAM-B-102-AP-MAG-1U

UPC: 793442025648

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
