$33.49
Print Details

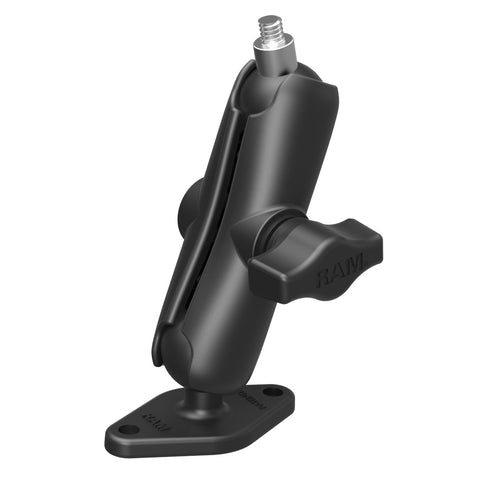

RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Threaded Stud
Part#:RAM-B-102-237U UPC:793442903823

Overview

The RAM-B-102-237U consists of a double socket arm, diamond base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.41 lb

Components

RAM® Double Socket Arm RAM-B-201U $18.49
RAM® Diamond Ball Base RAM-B-238U $8.99
