Overview

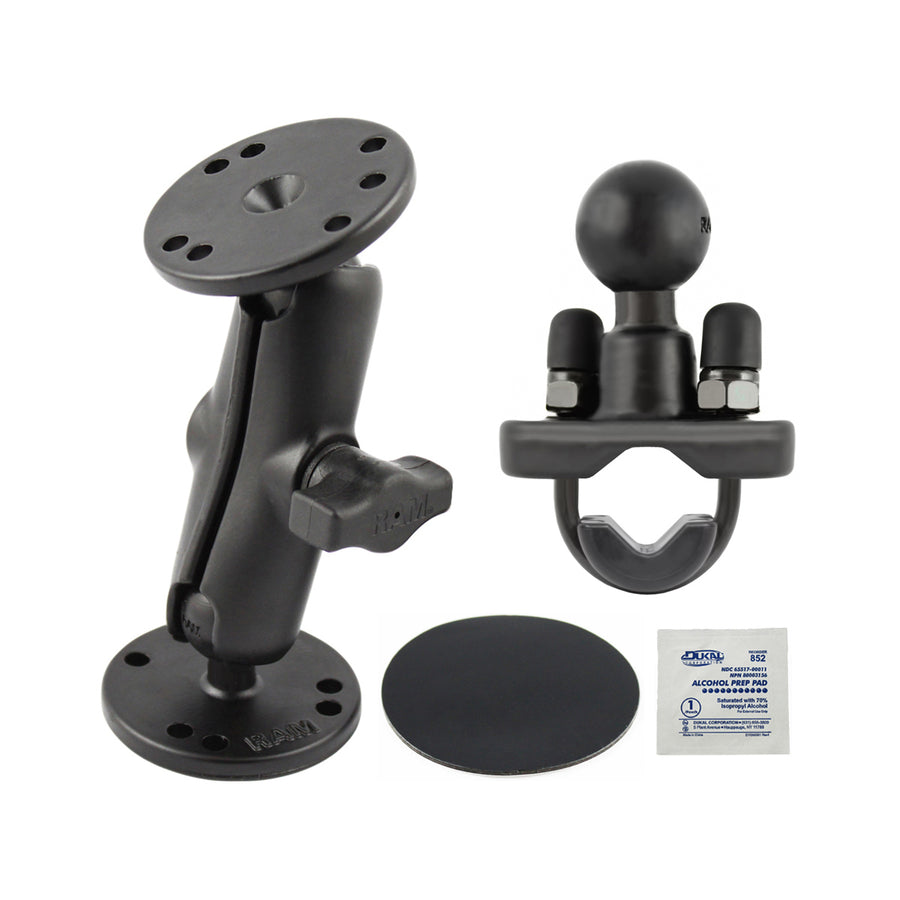

The RAM-B-101U-CR1 consists of a medium length B-size arm with two 2.5" diameter round plates with universal AMPS hole pattern. This mount also includes a 2.5" diameter double sided adhesive pad and a U-Bolt base with 1" diamter B-size ball. The U-Bolt base is compatible with round rails between .5" and 1.25" in diameter.
hardware included:
(1) 2 7/16" Double Adhesive Pad
(1) Alcohol Prep Pad
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.19 lb
