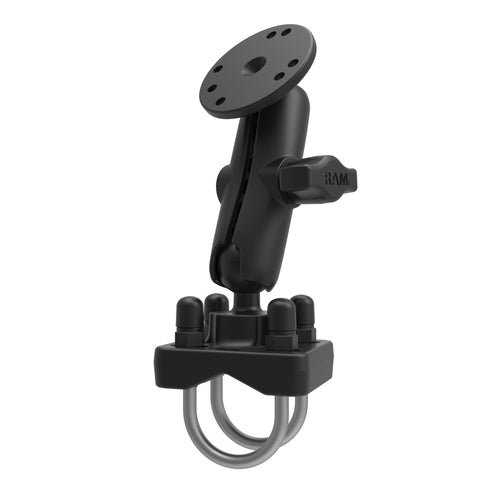

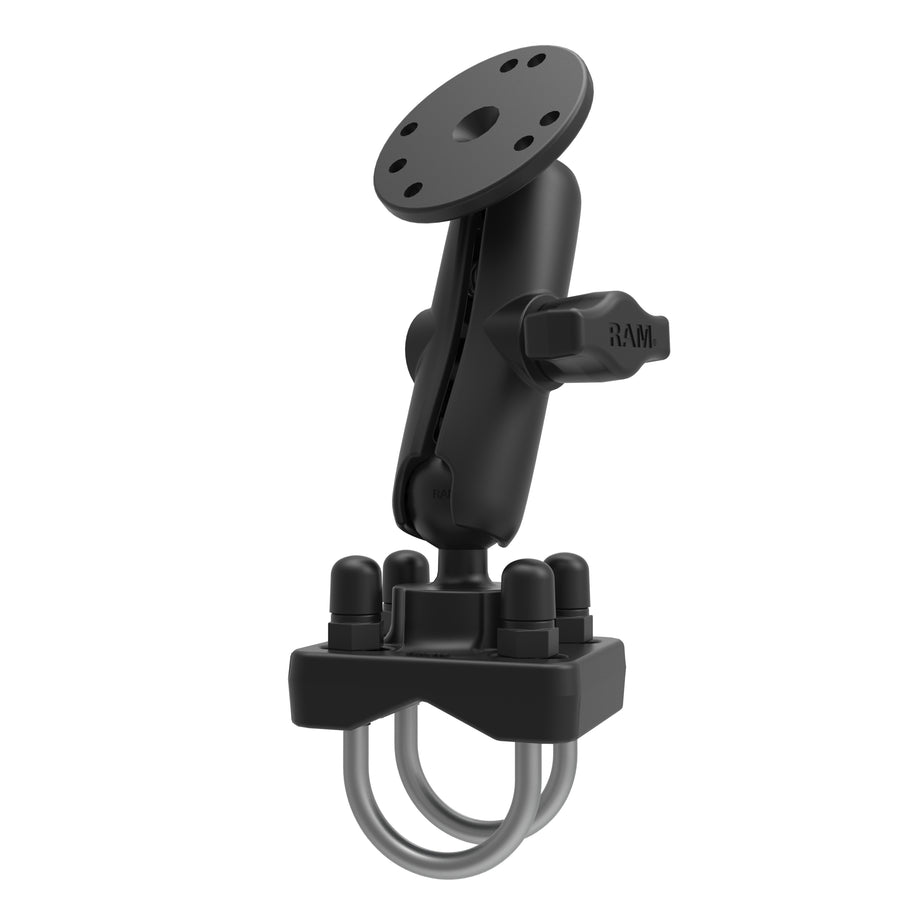

RAM® Double U-Bolt Rail Mount for Smaller Rails - B Size Medium
$50.49
The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
RAM® Double U-Bolt Rail Mount for Smaller Rails - B Size Medium
Overview

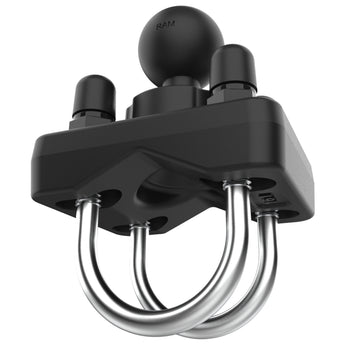

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
hardware included
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
clamp range
1" - 1.25" diameter
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.87 lb
