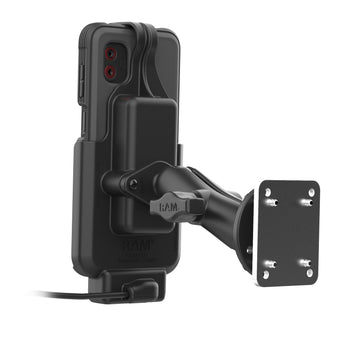

RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover6 Pro
Part #: RAM-B-101-225B2-SAM84-V7B1U UPC: 793442025877 Patented & Pats. Pend. Features Bundle includes the RAM® EZ-Roll'r™ dock, RAM® Skin, B size double ball mount with medium arm, backing plate adapter, and cable clamp Powered dock designed specifically for the Samsung Galaxy XCover6 Pro wrapped in the RAM® Skin™ or Samsung OEM case Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection Backed by a 3-year warranty

Part #: RAM-B-101-225B2-SAM84-V7B1U UPC: 793442025877 Patented & Pats. Pend.

Features

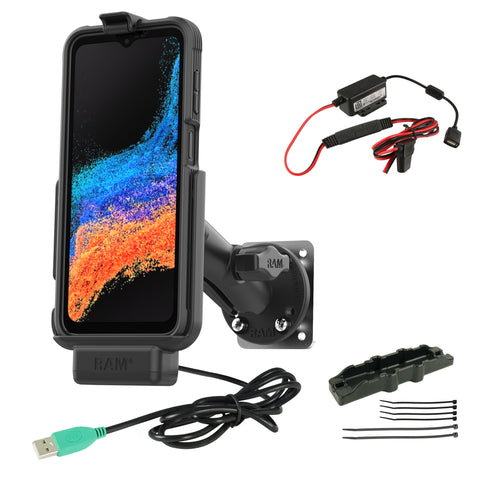

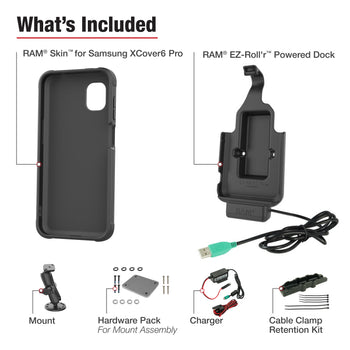

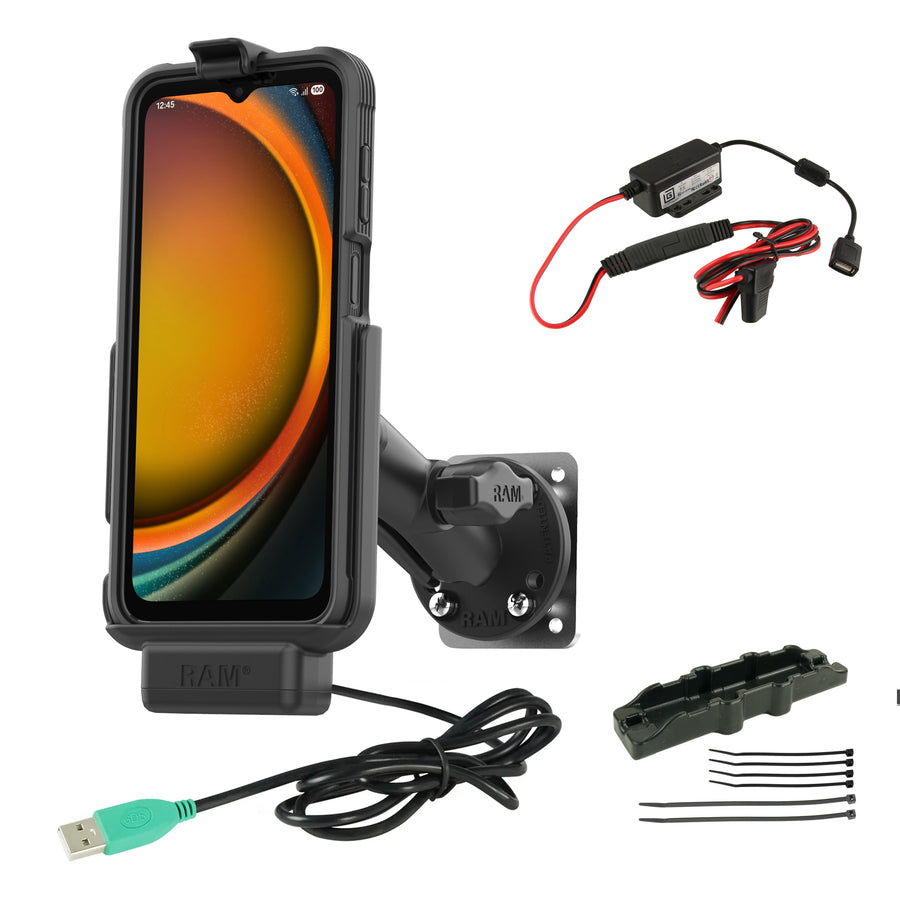

Bundle includes the RAM® EZ-Roll'r™ dock, RAM® Skin, B size double ball mount with medium arm, backing plate adapter, and cable clamp
Powered dock designed specifically for the Samsung Galaxy XCover6 Pro wrapped in the RAM® Skin™ or Samsung OEM case
Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection
Backed by a 3-year warranty

RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover6 Pro

Product Information
Overview	The RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover6 Pro (RAM-B-101-225B2-SAM84-V7B1U) is a comprehensive kit of everything needed to deploy the Samsung XCover6 Pro in your fleet. It contains one RAM® EZ-Roll'r™ dock, RAM® Skin for the XCover6 Pro, and double ball mount with backing plate. The dock uses a USB Type-A female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® EZ-Roll'r™ Dock is backed by a 3-year warranty.

Product Information

Overview

The RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover6 Pro (RAM-B-101-225B2-SAM84-V7B1U) is a comprehensive kit of everything needed to deploy the Samsung XCover6 Pro in your fleet. It contains one RAM® EZ-Roll'r™ dock, RAM® Skin for the XCover6 Pro, and double ball mount with backing plate. The dock uses a USB Type-A female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® EZ-Roll'r™ Dock is backed by a 3-year warranty.

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
input voltage	10-30VDC
output voltage	5-9VDC
output current	2.5A max
input cable length	1.2 Meters including 2 pole flat marine connector
operating temperature	-10°C to +70°C
storage temperature	-40°C to +70°C
regulatory	Overvoltage/Load Dump Compliance: Meets SAE J-1113
certifications	Integrated Short Circuit Protection FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support
Weight	1.63 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover6 Pro

Part#: RAM-B-101-225B2-SAM84-V7B1U

UPC: 793442025877

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

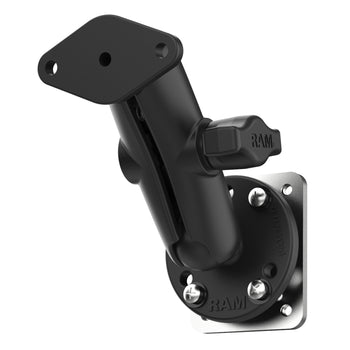

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$184.49

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Bundle includes the RAM® EZ-Roll'r™ dock, RAM® Skin, B size double ball mount with medium arm, backing plate adapter, and cable clamp
Powered dock designed specifically for the Samsung Galaxy XCover6 Pro wrapped in the RAM® Skin™ or Samsung OEM case
Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection
Backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-9VDC

output current:

2.5A max

input cable length:

1.2 Meters including 2 pole flat marine connector

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Overvoltage/Load Dump Compliance: Meets SAE J-1113

certifications:

Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
