Patent Pending

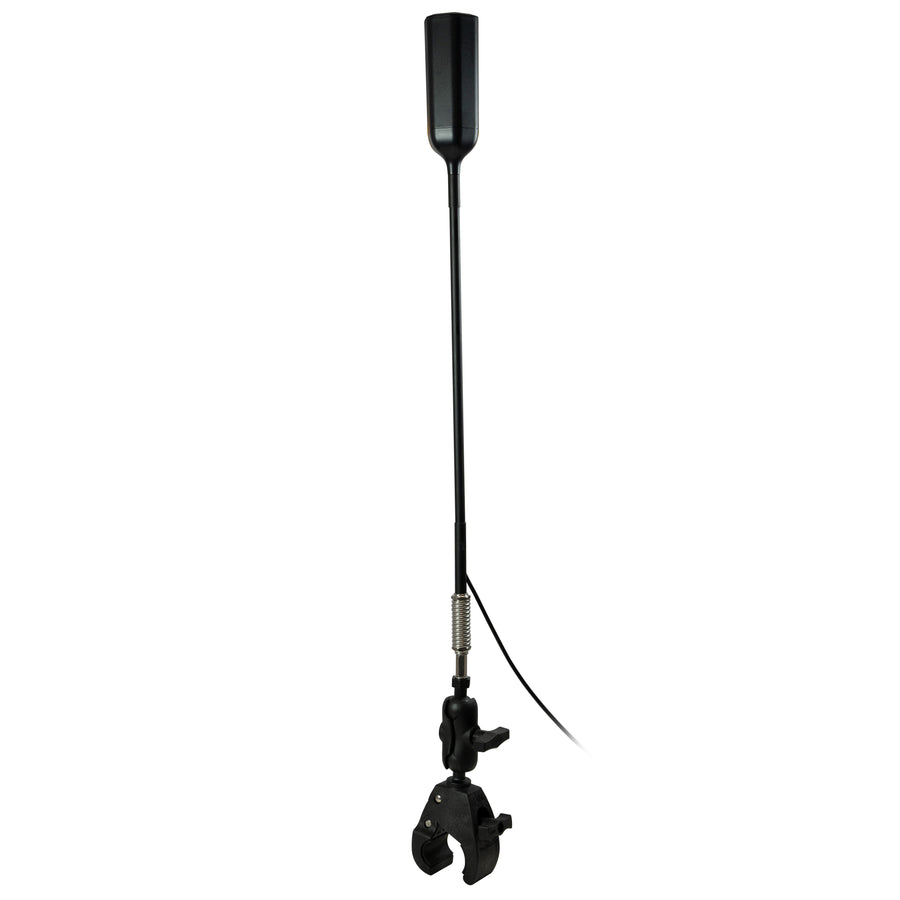

RAM® Tough-Claw™ Heavy Duty Mount for weBoost

Part#: RAM-404-379-372437U
UPC: 793442014420

Compatibility

weBoost

Drive 4G-X OTR Drive Reach OTR Fleet Drive Sleek OTR Drive X OTR Fleet

Kit Components

Previous Slide Next Slide
$100.99

Overview

This weBoost mounting kit includes a 3/8"-24 x .375" threaded RAM® Tough-Ball™ that screws into thread adapter of the weBoost antenna, a C size short length socket arm and a C size medium clamp RAM® Tough-Claw™ to mount to 1" to 1.6" rails and bars such as a vehicle ladder, or roof/bed rack. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.

Features

  • Kit includes 3/8"-24 x .375" Threaded RAM® Tough-Ball™ that screws into thread adpater of the weBoost antenna, C size short length socket arm and C size medium clamp RAM® Tough-Claw™ to mount to 1" to 1.6" rails and bars such as a vehicle ladder or roof/bed rack
  • The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

clamp range:

1" - 1.6" diameter

socket to socket length:

2.5"

thread pitch:

3/8"-24 x .375"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.62 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tough-Claw™ Heavy Duty Mount for weBoost
$100.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
