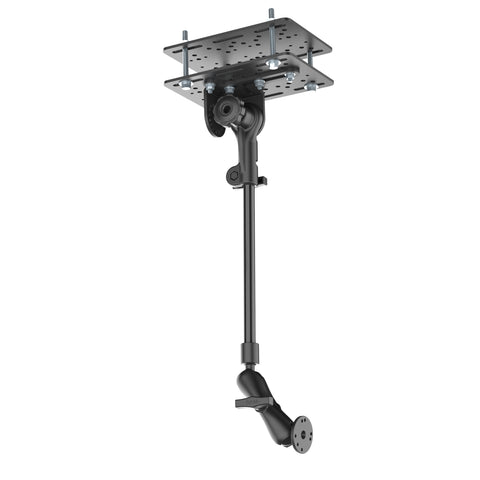

RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount
Part #: RAM-335-316-HD-18-202U UPC: 793442026508 Patented Features Eye-level, heavy duty tablet mount for forklifts Secures to overhead guards with two identical stamped steel plates Compatible with RAM® device holders containing the universal AMPS hole pattern Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Back by a lifetime warranty

RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount

Part #: RAM-335-316-HD-18-202U UPC: 793442026508 Patented

Features

Eye-level, heavy duty tablet mount for forklifts

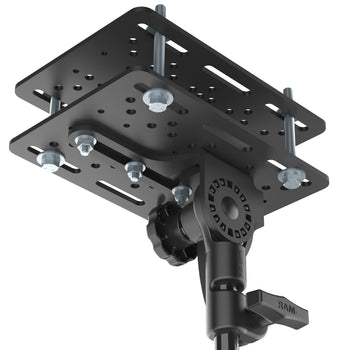

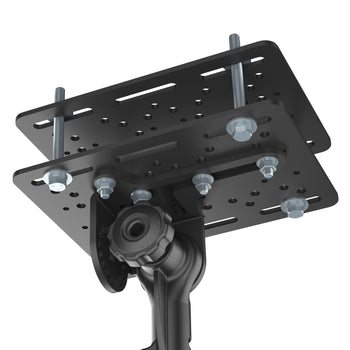

Secures to overhead guards with two identical stamped steel plates
Compatible with RAM® device holders containing the universal AMPS hole pattern
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Back by a lifetime warranty

RAM® Overhead Guard Mount with RAM® Pod HD™ 30

Product Information

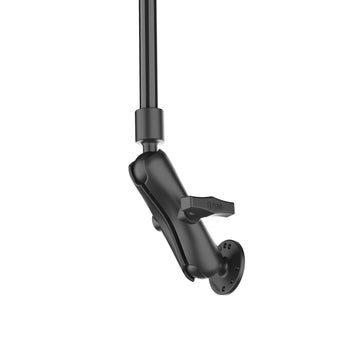

Overview	The RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount (RAM-335-316-HD-18-202U) provides an eye-level tablet mounting solution for forklifts. The overhead guard base consists of two identical plates of stamped steel with numerous common hole patterns and slots (available in the resources tab) making installation a breeze. The RAM® Pod HD™ is 30" and topped with a C size arm and C size round plate with ball. The round plate with ball features the universal AMPS hole pattern to secure your preferred tablet holder or dock.

Product Information

Overview

The RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount (RAM-335-316-HD-18-202U) provides an eye-level tablet mounting solution for forklifts. The overhead guard base consists of two identical plates of stamped steel with numerous common hole patterns and slots (available in the resources tab) making installation a breeze. The RAM® Pod HD™ is 30" and topped with a C size arm and C size round plate with ball. The round plate with ball features the universal AMPS hole pattern to secure your preferred tablet holder or dock.

Specifications
hardware included	Assembly Hardware
product dimensions	Height Range: 24.75" - 31.75" Pipe Diameter: .84" OD
socket to socket length	4.66"
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	13.34 lb
Additional Information	This mount can support any RAM® or GDS® Tablet Dock or Holder, but is not suitable for any heavy duty vehicle-mounted computer or tablet + keyboard combo.

Questions about our products? Email us for support.

Patented

RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount

Part#: RAM-335-316-HD-18-202U

UPC: 793442026508

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$312.99

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Eye-level, heavy duty tablet mount for forklifts
Secures to overhead guards with two identical stamped steel plates
Compatible with RAM® device holders containing the universal AMPS hole pattern
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Back by a lifetime warranty

hardware included:

Assembly Hardware

product dimensions:

Height Range: 24.75" - 31.75"
Pipe Diameter: .84" OD

socket to socket length:

4.66"

hole pattern:

See Drawing

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine-grade aluminum

packaging type:

Box

Weight:

13.34 lb

Additional Information:

This mount can support any RAM® or GDS® Tablet Dock or Holder, but is not suitable for any heavy duty vehicle-mounted computer or tablet + keyboard combo.
