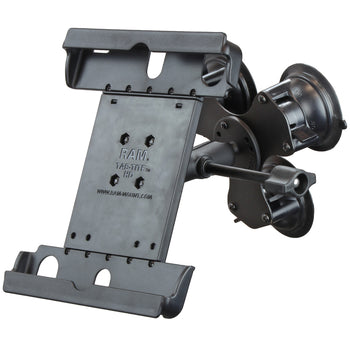

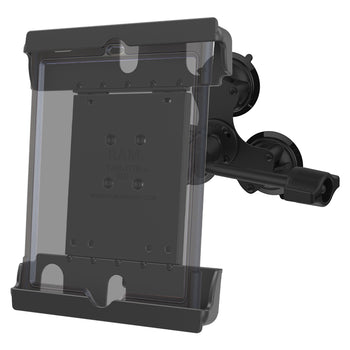

RAM^® Tab-Tite^™ with RAM^® Twist-Lock^™ Triple Suction for 9"-10.5" Tablets
Part #: RAM-333-224-1-ALA1-TAB20U UPC: 793442008337 Patented Features Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices Includes RAM^® Twist-Lock^™ triple suction cup base ideal for windshields and other nonporous surfaces Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty*

RAM^® Tab-Tite^™ with RAM^® Twist-Lock^™ Triple Suction for 9"-10.5" Tablets

Part #: RAM-333-224-1-ALA1-TAB20U UPC: 793442008337 Patented

Features

Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
Includes RAM^® Twist-Lock^™ triple suction cup base ideal for windshields and other nonporous surfaces
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

RAM<sup>®</sup> Tab-Tite<sup>™</sup> with RAM<sup>®</sup> Twist-Lock<sup>™</sup> Triple Suction for 9

Product Information
Overview	The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captain of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.

Product Information

Overview

The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captain of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 9.5" - 12.125" Width Range: 6.55" - 7.43" Depth Range: .3" - .875"
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.22 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

RAM<sup>®</sup> Tab-Tite<sup>™</sup> with RAM<sup>®</sup> Twist-Lock<sup>™</sup> Triple Suction for 9"-10.5" Tablets

Questions about our products? Email us for support.

Patented

RAM^® Tab-Tite^™ with RAM^® Twist-Lock^™ Triple Suction for 9"-10.5" Tablets

Part#: RAM-333-224-1-ALA1-TAB20U

UPC: 793442008337

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPad (5th Generation) with Case

iPad (6th Generation) with Case

iPad (7th Generation) with Case

iPad (8th Generation) with Case

iPad (9th Generation) with Case

iPad (10th Generation) with Case

iPad (11th Generation) with Case

iPad 9.7 (2017) with Case

iPad 9.7 (2018) with Case

iPad Air with Case

iPad Air 2 with Case

iPad Pro 10.5 (2nd Generation) with Case

ASUS

ZenPad 10 with Case

ZenPad 3S 10 with Case

ZenPad Z10 with Case

Huawei

MediaPad M2 10.0 with Case

Lenovo

Tab 2 A10-70 with Case

Tab 4 10 with Case

Tab 4 10 Plus with Case

Tab K11 with Case

Tab3 10 Business with Case

Yoga Tab 3 10 with Case

LG

G Pad 10.1 with Case

G Pad II 10.1 with Case

G Pad X 10.1 with Case

G Pad X II 10.1 with Case

Microsoft

Surface Go with Case

Surface Go 2 with Case

Samsung

Galaxy Tab 10.1 with Case

Galaxy Tab 3 10.1 with Case

Galaxy Tab 8.9 with Case

Galaxy Tab A 9.7 with Case

Galaxy Tab A 10.5 with Case

Galaxy Tab Pro 10.1 with Case

Galaxy Tab S2 9.7 with Case

Galaxy Tab S3 9.7 with Case

Galaxy Tab S4 10.5 with Case

Galaxy Tab S6 with Case

Galaxy Tab S7 with Case

Galaxy Tab S8 with Case

Galaxy Tab S9 with Case

Galaxy Tab S9 FE with Case

Sony

Xperia Tablet Z with Case

Vankyo

MatrixPad Z4 10"

Additonal Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

$132.99

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPad (5th Generation) with Case

iPad (6th Generation) with Case

iPad (7th Generation) with Case

iPad (8th Generation) with Case

iPad (9th Generation) with Case

iPad (10th Generation) with Case

iPad (11th Generation) with Case

iPad 9.7 (2017) with Case

iPad 9.7 (2018) with Case

iPad Air with Case

iPad Air 2 with Case

iPad Pro 10.5 (2nd Generation) with Case

ASUS

ZenPad 10 with Case

ZenPad 3S 10 with Case

ZenPad Z10 with Case

Huawei

MediaPad M2 10.0 with Case

Lenovo

Tab 2 A10-70 with Case

Tab 4 10 with Case

Tab 4 10 Plus with Case

Tab K11 with Case

Tab3 10 Business with Case

Yoga Tab 3 10 with Case

LG

G Pad 10.1 with Case

G Pad II 10.1 with Case

G Pad X 10.1 with Case

G Pad X II 10.1 with Case

Microsoft

Surface Go with Case

Surface Go 2 with Case

Samsung

Galaxy Tab 10.1 with Case

Galaxy Tab 3 10.1 with Case

Galaxy Tab 8.9 with Case

Galaxy Tab A 9.7 with Case

Galaxy Tab A 10.5 with Case

Galaxy Tab Pro 10.1 with Case

Galaxy Tab S2 9.7 with Case

Galaxy Tab S3 9.7 with Case

Galaxy Tab S4 10.5 with Case

Galaxy Tab S6 with Case

Galaxy Tab S7 with Case

Galaxy Tab S8 with Case

Galaxy Tab S9 with Case

Galaxy Tab S9 FE with Case

Sony

Xperia Tablet Z with Case

Vankyo

MatrixPad Z4 10"

Additonal Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

Options

Overview

Features

Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
Includes RAM^® Twist-Lock^™ triple suction cup base ideal for windshields and other nonporous surfaces
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.22 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

Print

Instructions

RAM^® Twist-Lock^™ Suction Cup Assembly Guide

RAM^® Tab-Tite^™ Assembly Guide

Documents

How to Find the Right Holder for Your Tablet

Questions & Answers

Have a Question?

Ask a Question

Will the RAM® Tab-Tite™ with RAM® Twist-Lock™ Triple Suction for 9"-10.5" Tablets work for a 10.2" ipad with a case?Thanks

Yes, that complete kit will work for that tablet as long as the tablet with case falls within these dimension ranges:

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
