RAM^® Pod^™ III Double Ball Vehicle Mount with Round Plate
Part #: RAM-316-3-202U UPC: 793442910272 Patented

Product Information

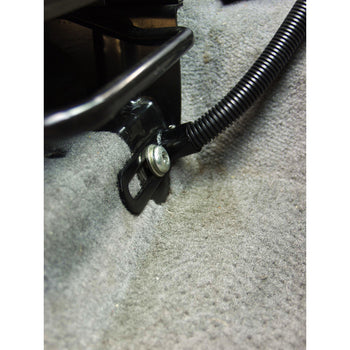

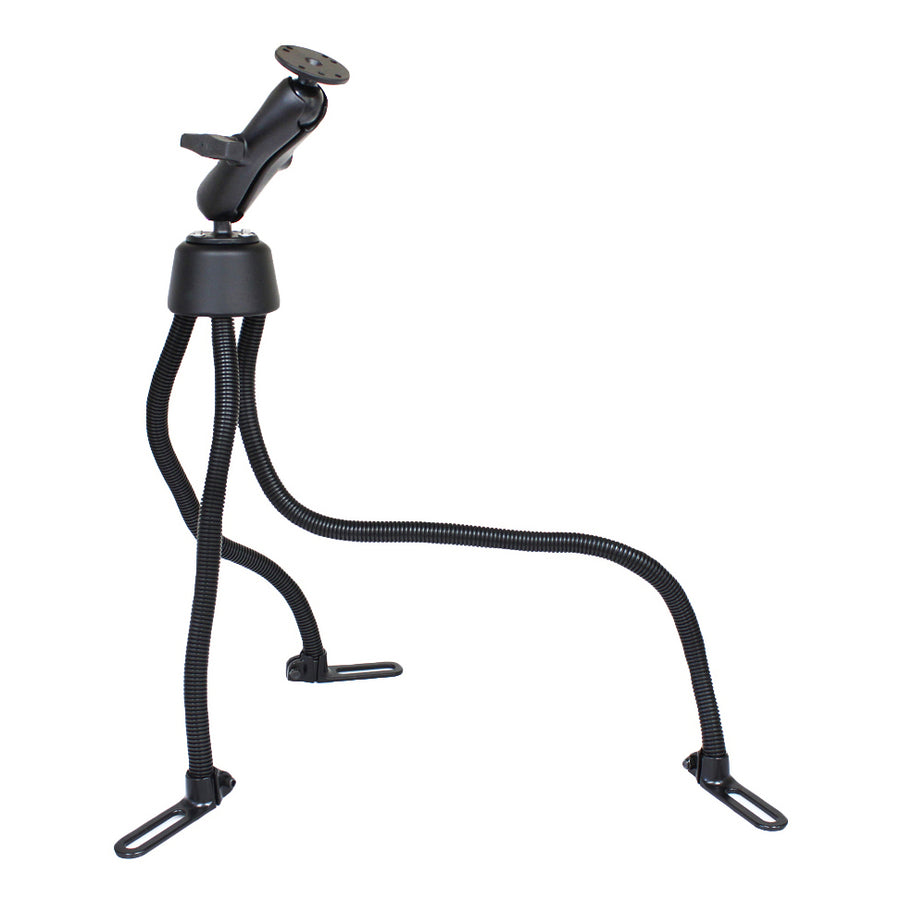

Overview	The RAM-316-3-202U consists of the RAM POD III No-Drill^™ vehicle base, three rigid aluminum rod legs, double socket arm and two 2.5" round bases that contain the universal AMPs hole pattern. The base of the mount connects to your seat rail without any drilling necessary. The rigid aluminum rod legs can be bent to position your device to its optimum viewing location. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The universal AMPs hole pattern found on the round base adapter will connect to many RAM cradles.

Product Information

Overview

The RAM-316-3-202U consists of the RAM POD III No-Drill^™ vehicle base, three rigid aluminum rod legs, double socket arm and two 2.5" round bases that contain the universal AMPs hole pattern. The base of the mount connects to your seat rail without any drilling necessary. The rigid aluminum rod legs can be bent to position your device to its optimum viewing location. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The universal AMPs hole pattern found on the round base adapter will connect to many RAM cradles.

Specifications
hardware included	Assembly Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	5.59 lb

RAM<sup>®</sup> Pod<sup>™</sup> III Double Ball Vehicle Mount with Round Plate

Questions about our products? Email us for support.

Patented

RAM^® Pod^™ III Double Ball Vehicle Mount with Round Plate

Part#: RAM-316-3-202U

UPC: 793442910272

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
