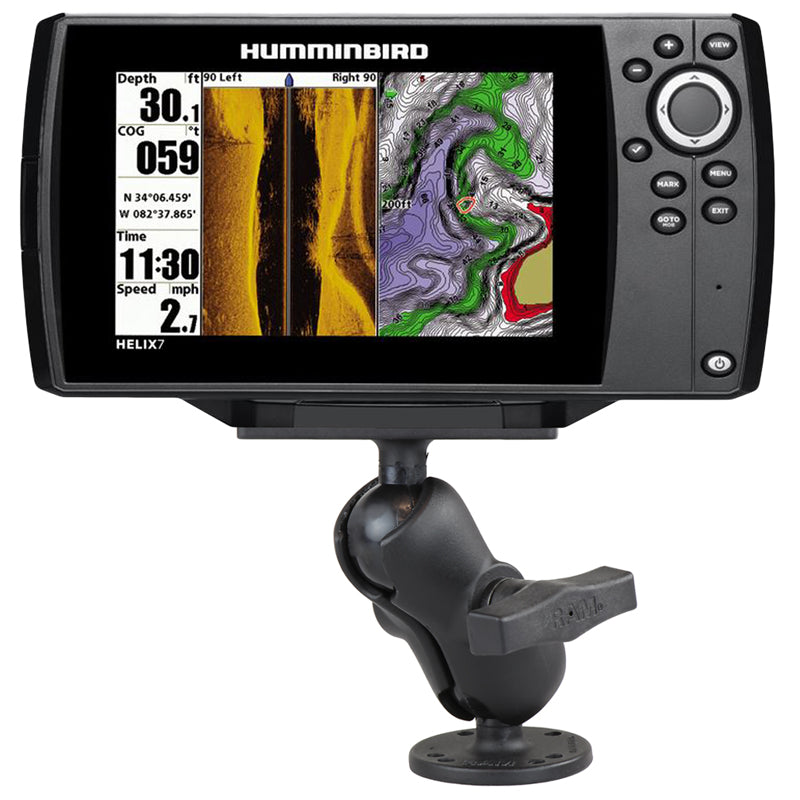

RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Short
C Size
Short Arm
$68.99
Overview
The RAM-202-24-B-202U, powder coated marine grade aluminum mount, consists of a short double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern and one 2" x 4" rectangular base. The unique rubber ball and socket technology dampens shock and vibration while offering high adjustability to achieve the perfect viewing angle.
product dimensions:
Overall Height: 5.225"
socket to socket length:
2.5"
hole pattern:
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1.5" x 3.5"
plate size:
Top Plate: 2" x 4"
Bottom Plate: 2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.01 lb
Questions & Answers
Have a Question?
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
Will this work with the Helix 7 G4N?
Yes, the RAM-202-24-B-202U will accommodate the Humminbird Helix 7 G4N.
-
Is a longer arm available for the Helix 7 double ball mount. And does the Helix 7 Gen4 fit the 6" swing arm mount?
Yes, the longer arm version of this mount is the RAM-202-24-202U. The Helix 7 Gen4 will not line up with any Swing Arm mounts, unless you are willing to drill additional holes in the bracket or mounting plate.
