Patented

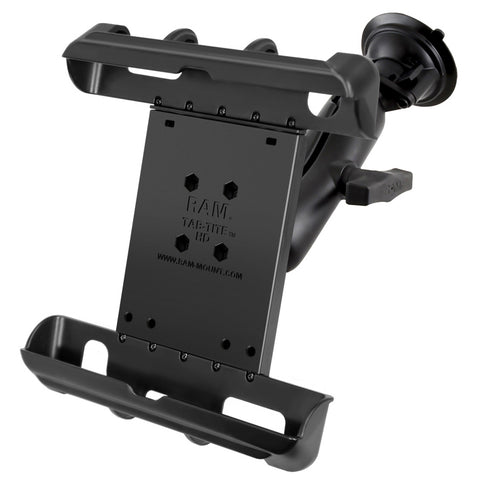

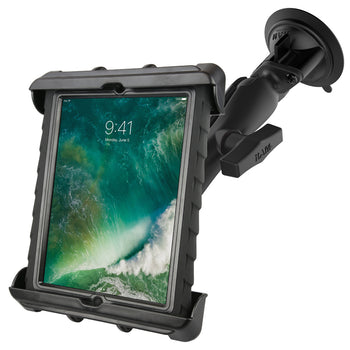

RAM® Tab-Tite™ Large Tablet Mount with RAM® Twist-Lock™ Suction Cup
Part#: RAM-166-TAB17U
UPC: 793442943232
Ball Icon C Size
Arm Icon Medium Arm
$107.99

Overview

The RAM-B-166-TAB17U consists of a 3.3" diameter suction cup twist lock base with 1.5" dia. ball, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

suction size:

3.3" Diameter

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.48 lb
