RAM® Double Ball Mount with Rectangle AMPS Plates - C Size Short

Part#: RAM-141-BU
UPC: 793442018695

Kit Components

Previous Slide Next Slide
$57.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Overview

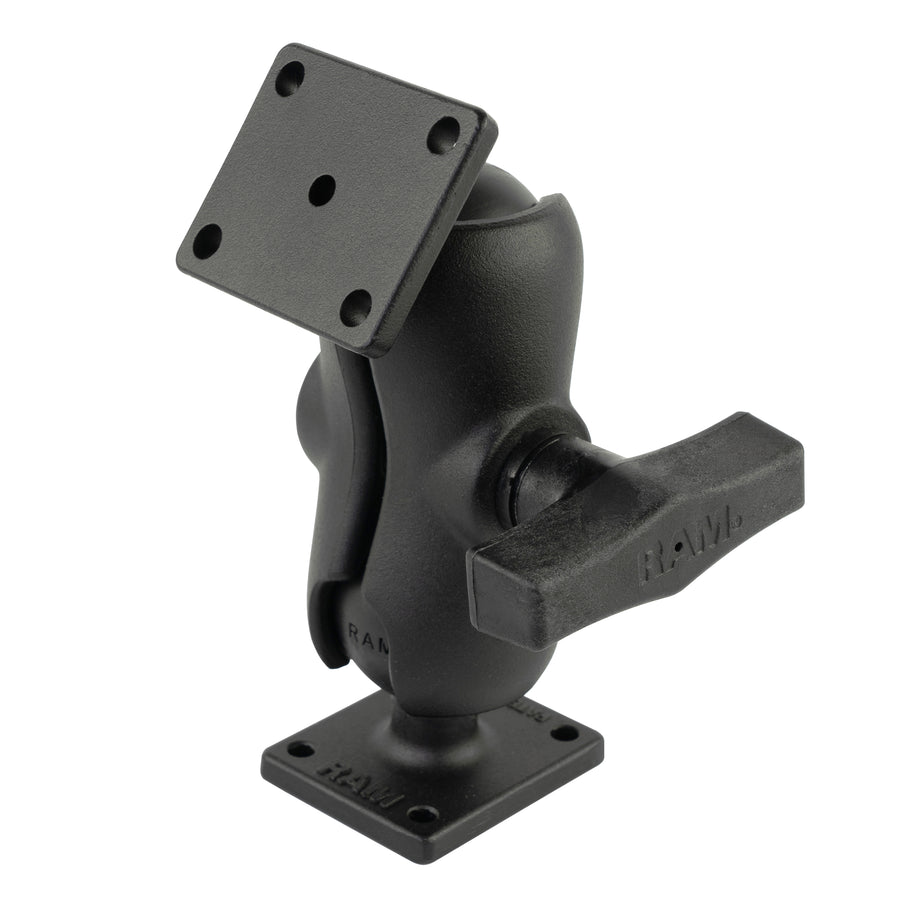

The RAM-141-BU consists of a short double socket arm and two base plates, each containing the universal 4-hole AMPS pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device. Comparable to the round plates, this version offers a slightly smaller footprint on each plate; 1.69" x 2".

Features

  • Drill-down mounting solution; choose either plate featuring the AMPS hole pattern for attachment to compatible device holders
  • Includes two ball bases and C size short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

product dimensions:

Overall Height: 5.225"

socket to socket length:

2.5"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.87 lb
