RAM® Vertical 12" Swing Arm Mount for Fishfinders & Plotters
Part#: RAM-109V-1U
UPC: 793442010965
$141.99

Overview

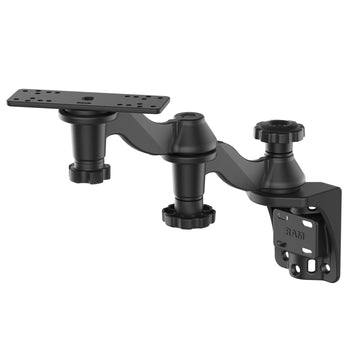

The RAM double swing arm mount includes two 6" long bent swing arms mounted on a vertical surface mounting base. At the end of the device mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.

product dimensions:

Overall Height: 11.58"
Total Swing Arm Length: 12"

hole pattern:

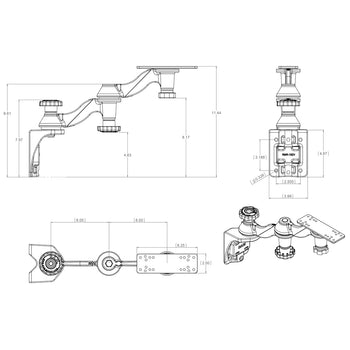

See Drawing

plate size:

Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"

weight capacity:

8 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

3.9 lb

Additional Information:

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Print

Documents

Questions & Answers

Have a Question?

Ask a Question
  • What screws are used to attach the RAM Mount to the gimbal bracket?

    Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.

  • Would this mount be able to hold a Raymarine Element 7 S multifunction display?

    This will work with Raymarine: Fishfinders and GPSChartplotters

    Additional information:

    The included plate is a universal mounting bracket with aselection of mounting hole locations. In certain applications additional holesmay need to be drilled for proper fit with your electronic device.

  • Can I add a third arm to this product? RAM-109-1AU and still be stable?

    Yes; you can add RAM® 6" Curved Extension Swing Arm for Horizontal/Vertical Mounts .

    Three would be the limit we suggest but be advise adding does take away from the stability.

  • Could you use the RAM® Composite Rail Mount Adapter Kit, Part#:RAP-233U, UPC:793442909795, to mount this to a vertical rail?Thanks

    The RAP-233U is not compatible with this mount. However the vertical swing arm mount can attach to vertical rails with the use of any third party U-Bolts or hose clamps. The base is designed with various slotted holes to accept u-bolts or hose clamps for virtually any size rails.

  • Would this mount be able to hold a Raymarine Axiom 12+ multifunction display?

    The mounting plate on our swing arms will not line up with the holes on the Axiom bracket, so in that regard it will not fit. You could always drill additional holes in the bracket to make it work with the swing arms, but otherwise we recommend our D Size double ball mounts found here for the Axiom 12 Series (standard and plus). You can always mount the double ball mounts to a vertical surface; it just wouldn't have that same swing feature.

  • Can this mount be adapted to mount on a vertical round rail?

    Yes, there is a V-shaped indent on the back of the base that allows you to mount this to a vertical rail. The base does not come with any rail mounting hardware, but it has various holes to either allow U-Bolts or strap hose claps to be routed through to mount this onto a vertical rail.
