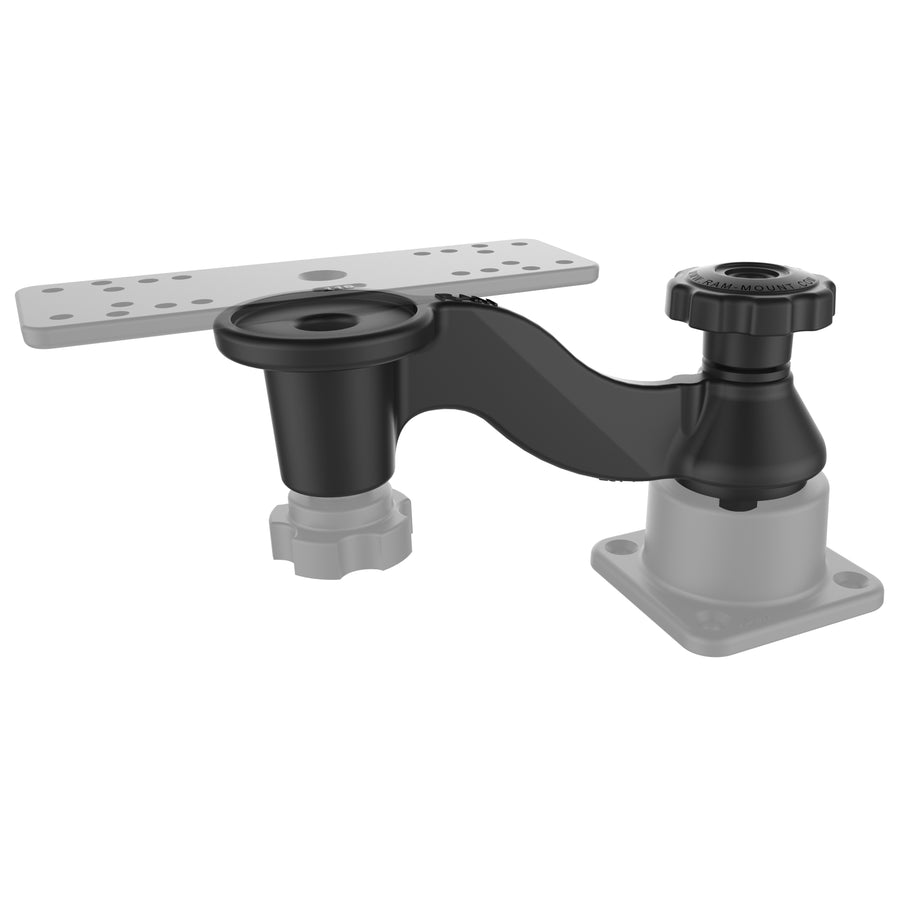

RAM^® 6" Curved Swing Arm for Horizontal/Vertical Mounts
Part #: RAM-109-1APU UPC: 793442913174

Product Information
Overview	The RAM-109-1AP is a bent 6" long Arm Extension for the RAM 109 series. This arm includes a 3" long bolt, washers and tightening knob. This swing arm will connect directly to either the RAM-109H-B Horizontal Base or the RAM-109V-B Vertical Base. The 3" bolt will allow the swing arm to connect to a RAM-109 base, and the other end of this mount will connect to either a second Swing Arm with 4" Bolt RAM-109-1A or RAM-109-1ATU or a Rectangular Pivoting Plate RAM-111BT.

Product Information

Overview

The RAM-109-1AP is a bent 6" long Arm Extension for the RAM 109 series. This arm includes a 3" long bolt, washers and tightening knob. This swing arm will connect directly to either the RAM-109H-B Horizontal Base or the RAM-109V-B Vertical Base. The 3" bolt will allow the swing arm to connect to a RAM-109 base, and the other end of this mount will connect to either a second Swing Arm with 4" Bolt RAM-109-1A or RAM-109-1ATU or a Rectangular Pivoting Plate RAM-111BT.

Specifications
hardware included	(1) 3/8"-16 x 3" Hex Bolt (1) 2" Rubber Washer (1) 1.25" Nylon Washer (1) 3/8" Stainless Steel Washer (1) 3/8"-16 Knob
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.91 lb
