RAM® Horizontal 6" Swing Arm Mount for Fish Finders & Plotters
Overview

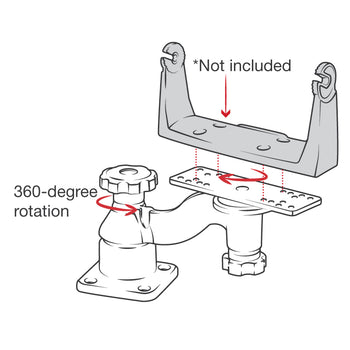

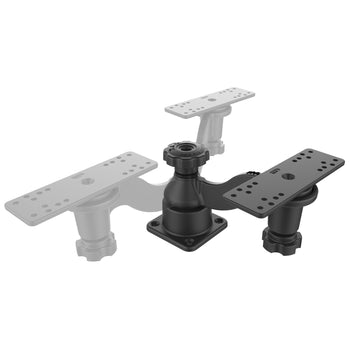

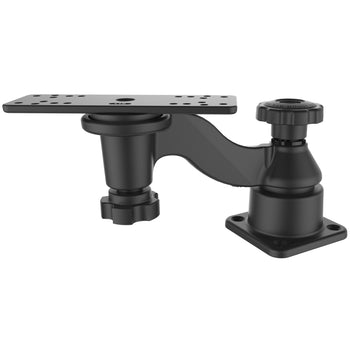

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
Features
- Universal drill-down fish finder mounting solution features 6" swing arm for ideal device placement
- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
product dimensions:
Overall Height: 5.41"
Total Swing Arm Length: 6"
hole pattern:
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
plate size:
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
weight capacity:
8 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
2.21 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Is there a way to turn this into a double swing arm mount?
Yes, you can add a second swing arm if you would like. The part number for that swing arm is RAM-109-1APU.
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically, the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
Will the RAM® Horizontal 6" Swing Arm Mount for Fishfinders & Plotters Part# RAM-109HU mounting plate holes fit the new Humminbird Xplore 9” locator?
Yes, this will work with your Xplore 9".
-
Would this work for a hummingbird solix 12 fish finder 12” screen?
Yes, this will work with your Humminbird Solix 12.
-
Do you offer higher base or an extension for the base? I ne.ed more vertical to clear dash obstacle
You can add RAM® 6" Curved Extension Swing Arm for Horizontal/Vertical Mounts.
-
Would the mount support a Garmin echomap ultra 2 106sv.? It is a 10” screen
Yes, this will work with your Garmin echomap ultra 2 106sv.
-
Detailed dimensions of the following RAM-109V-1U, RAM-109VU, RAM-109H-1U. Not sure which one will suit my sounder positioning so the dimensions required before purchase. It is for a Lowrance Elite9 FS fish finder. Also just wondering if you ship to Australia? if yes could you please advise the cost. Thanks in advance for your assistance. GD

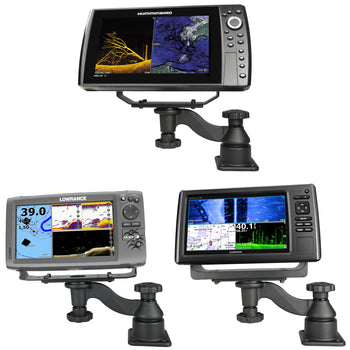

The RAM-109HU will work on your Lowrance Elite9 FS fish finder as well as RAM® Universal Marine Electronic Mount - D Size Short OR RAM® Vertical 6" Swing Arm Mount for Fishfinders & Plotters.
We do ship worldwide you just have to add to cart and proceed to check out to see shipping cost. -
What size are the adjustment knobs diameter or circumference
Both knobs are 2.37" OD
-
Will this attach directly to one of the adhesive bases that you sell?
The RAM-109HU is designed to drill in to a flat surface it is not compatible with the adhesive bases.
-
My unit came without screws & bolts. What size for the base plate?
We don't provide the drilldown hardware because we do not know what type of material it is being mounted into, but 1/4"-20 screws will work for the base plate.
-
Can you tighten the knob in order to have the arm in a fixed position
Yes, the tightening knobs of the RAM-109HU allow you to keep the swing arm in position on the horizontal drill down base as well as the chart plotter/fish finder at the other end of the swing arm.
