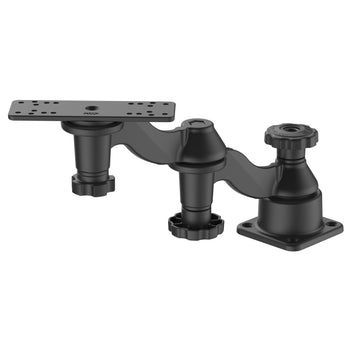

RAM® Horizontal 12" Swing Arm Mount for Fishfinders & Plotters
$127.49
Horizontal Base, Double Arm
The RAM double swing arm mount includes two 6" long bent swing arms mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.

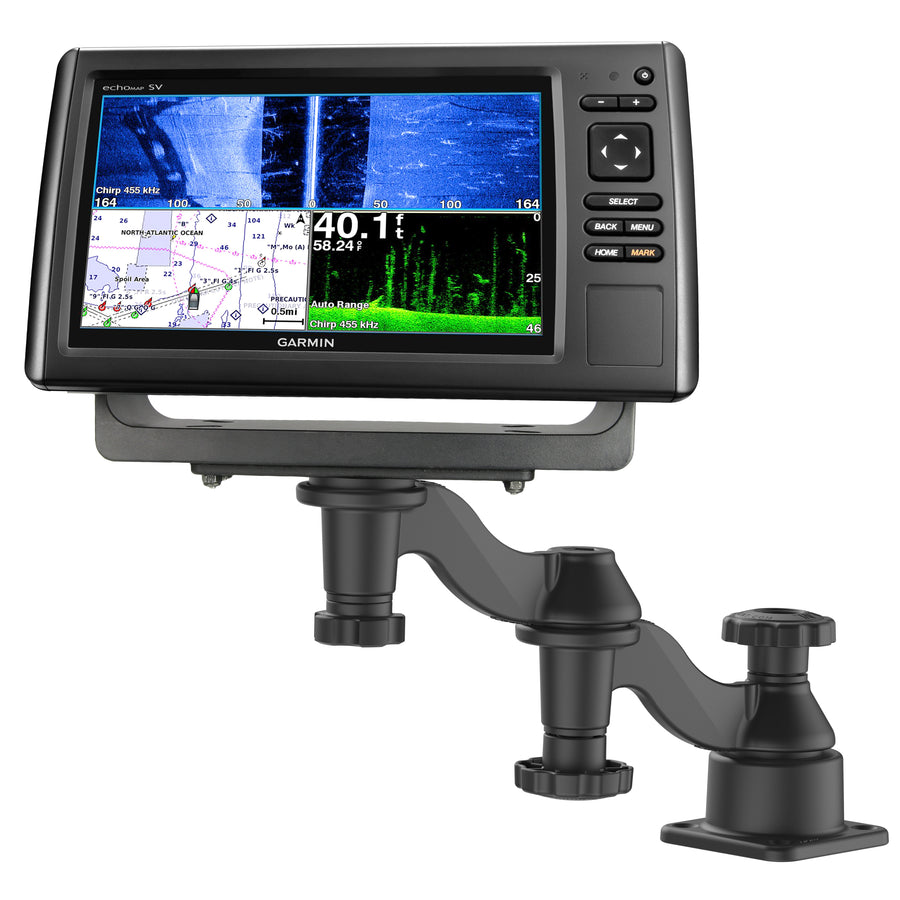

RAM® Horizontal 12" Swing Arm Mount for Fishfinders & Plotters
Overview
The RAM double swing arm mount includes two 6" long bent swing arms mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.
product dimensions
Overall Height: 8.58"
Total Swing Arm Length: 12"
hole pattern
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
plate size
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
weight capacity
8 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
3.4 lb
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
