RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Short
Part #: RAM-108-BU UPC: 793442000126

Product Information

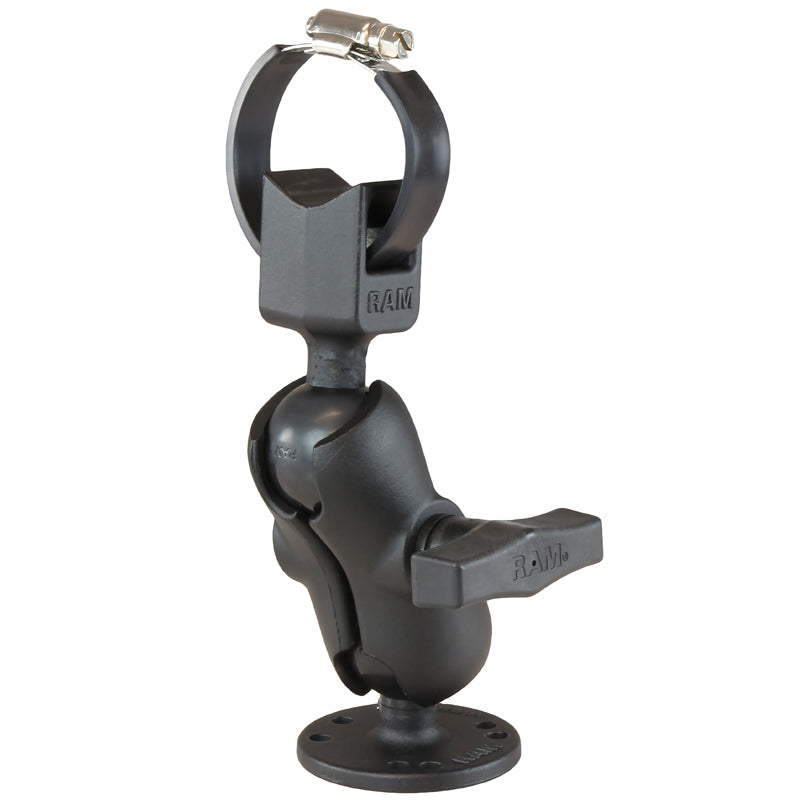

Overview	The RAM-108-BU consists of a adjustable strap clamp base, short double socket arm and 2.5" diameter round base that contains the universal AMPs hole pattern. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface.

Specifications
hardware included	(1) #20 Worm Drive Strap Clamp (1) #28 Worm Drive Strap Clamp (1) 6" Rubber Strip
product dimensions	Overall Height: 6.875"
clamp range	1" - 2.1" diameter
socket to socket length	2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.15 lb

RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Short

Questions about our products? Email us for support.

RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Short

Part#: RAM-108-BU

UPC: 793442000126

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$64.99
