RAM® Quick Draw™ Mount with Flat Surface Base
Part#:RAM-101U-CI1 UPC:793442905049 Patented

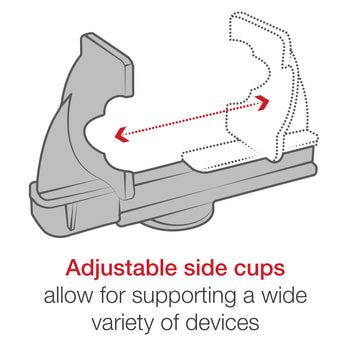

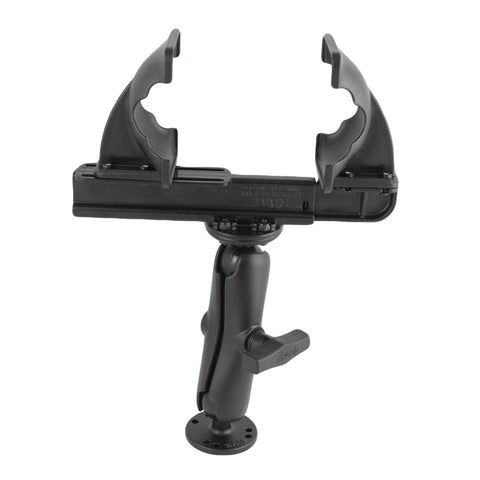

The RAM-101U-CL1 consists of a Quick Draw Spring Loaded Holder and a medium C size double socket arm, along with two round plates with C size (1.5" diameter) balls. This drill down kit is perfect for aftermarket scanner guns, handheld computers, and any other device that fits the dimensions

hardware included

Assembly Hardware

product dimensions

Overall Height: 7.35"

holder dimensions

Height Range: 2" - 10.75"
Max Width: 2.625"
Max Depth: 4.25"

socket to socket length


hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


Marine-grade aluminum
High strength composite

packaging type

Poly Bag


1.82 lb
