RAM® 2.5" Square Post Clamp Mount with Round AMPS Plate - Short Arm
Part#: RAM-101U-B-247-25
UPC: 793442928833
Ball Icon C Size
Arm Icon Short Arm
$69.49

Overview

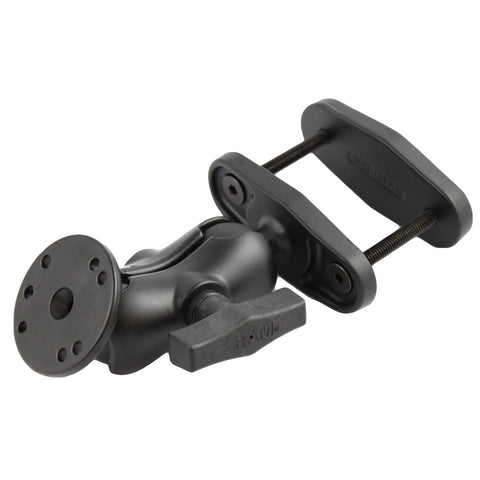

The RAM-101U-B-247-25 consists of a short length double socket arm, 2.5" diameter round base with the universal AMPS hole patternand a 2.5" maximum width square post clamp base.

hardware included:

(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts

clamp range:

2.5" max width

socket to socket length:

2.5"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.35 lb
