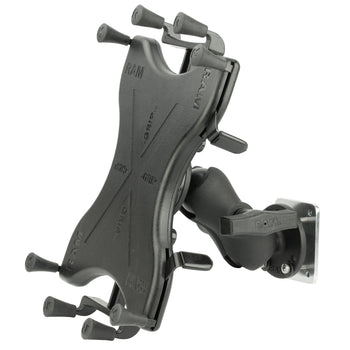

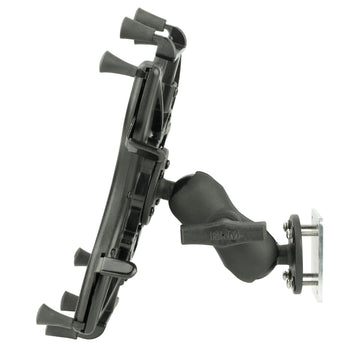

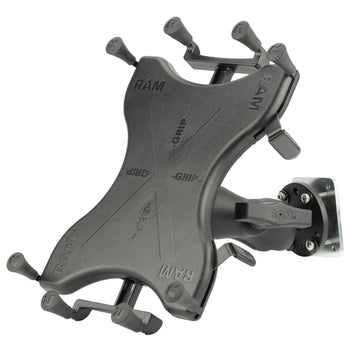

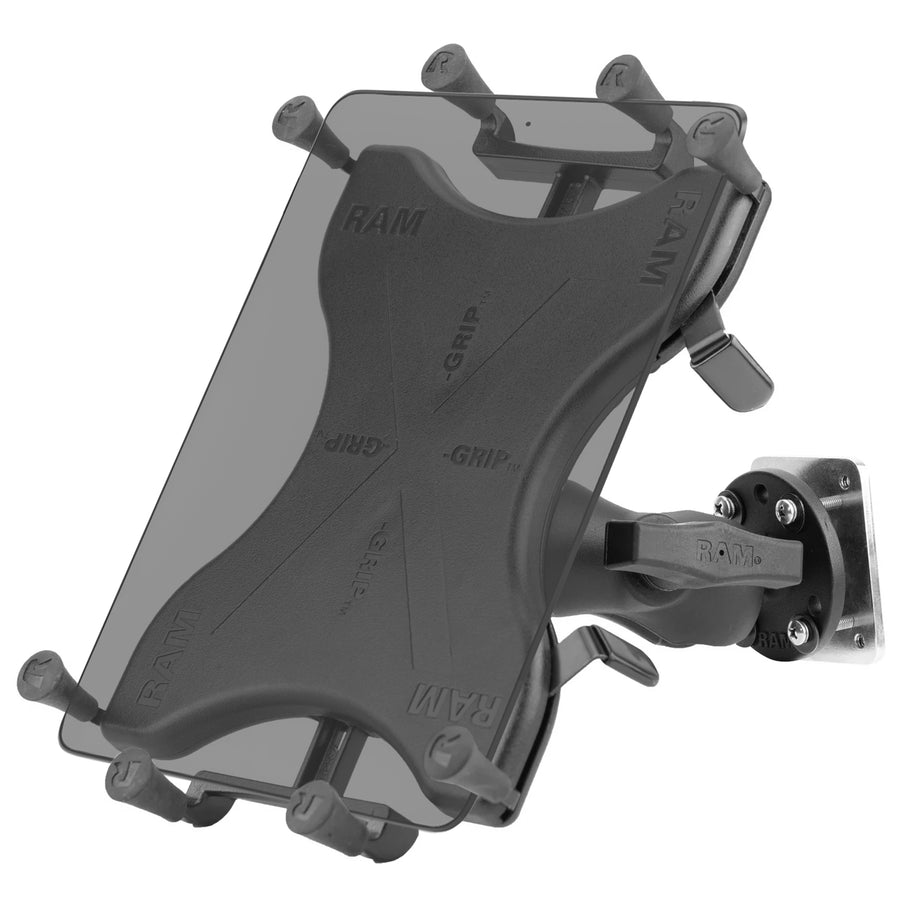

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets
Part #: RAM-101B2-UN9U UPC: 793442928970 Patented Features Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 9"-11" tablets Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders 2.10" x 2.60" steel backing plate attaches to a variety of RAM® Mounts ball bases Made of high-strength composite and steel components for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets

Part #: RAM-101B2-UN9U UPC: 793442928970 Patented

Features

Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 9"-11" tablets
Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

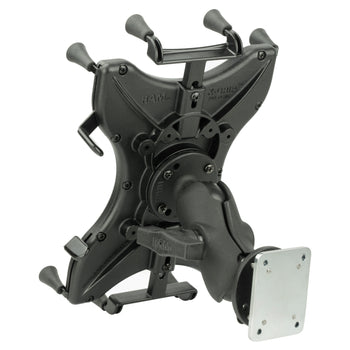

2.10" x 2.60" steel backing plate attaches to a variety of RAM® Mounts ball bases
Made of high-strength composite and steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® X-Grip® Dashboard Mount with Backing Plate for 9

Product Information

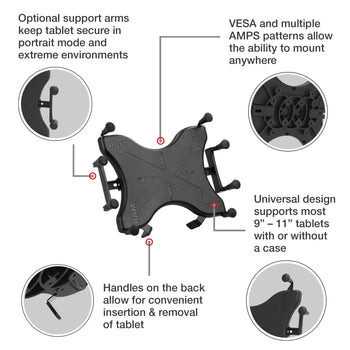

Overview	The RAM® X-Grip® universal holder for 9"-11" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the holder for quick release of your tablet. No matter what double socket arm and mounting base you pair the RAM® X-Grip® with, RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your tablet by providing shock and vibration damping. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 2.10" x 2.60" steel backing plate with #8-32 threaded holes attaches to a variety of RAM® Mounts ball bases.

Product Information

Overview

The RAM® X-Grip® universal holder for 9"-11" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the holder for quick release of your tablet. No matter what double socket arm and mounting base you pair the RAM® X-Grip® with, RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your tablet by providing shock and vibration damping. The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 2.10" x 2.60" steel backing plate with #8-32 threaded holes attaches to a variety of RAM® Mounts ball bases.

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers

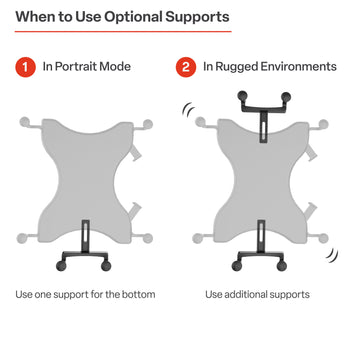

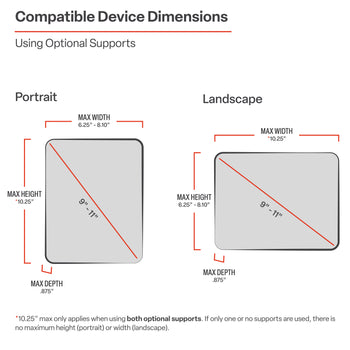

holder dimensions	Max Height: 10.25" (using optional supports) Width Range: 6.25" - 8.1" Max Depth: .875"
socket to socket length	2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.28 lb

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets

Video Thumbnail — YouTube video thumbnail for bLlbujrDOks

Patented

RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-11" Tablets

Part#: RAM-101B2-UN9U

UPC: 793442928970

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
