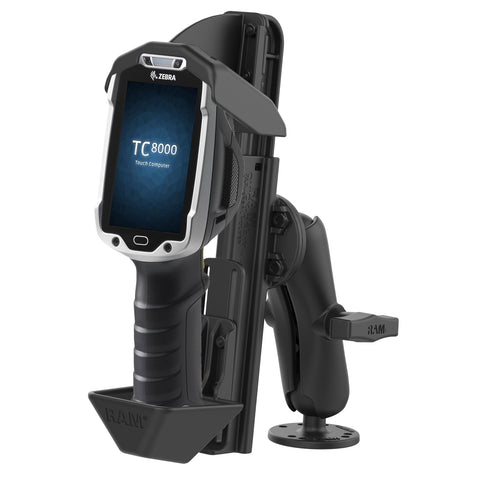

RAM® Quick-Draw™ Drill-Down Mount for Zebra TC8000/8300
Part #: RAM-101-ZE9U UPC: 793442012822 Patented Features Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300 Includes two round ball bases featuring the AMPS hole pattern and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composite with stainless steel spring for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-101-ZE9U UPC: 793442012822 Patented

Features

Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300
Includes two round ball bases featuring the AMPS hole pattern and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composite with stainless steel spring for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Quick-Draw™ Drill-Down Mount for Zebra TC8000/8300

Product Information
Overview	This RAM® Quick-Draw™ is designed specifically for the Zebra TC8000 and TC8300 and consists of a medium length C size 1.5" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

Product Information

Overview

This RAM® Quick-Draw™ is designed specifically for the Zebra TC8000 and TC8300 and consists of a medium length C size 1.5" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

Specifications
hardware included	Assembly Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.8 lb

Questions about our products? Email us for support.

Patented

RAM® Quick-Draw™ Drill-Down Mount for Zebra TC8000/8300

Part#: RAM-101-ZE9U

UPC: 793442012822

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
