RAM® Universal Backing Plate Mount
Part#:RAM-101-SAE1 UPC:793442911552

Overview

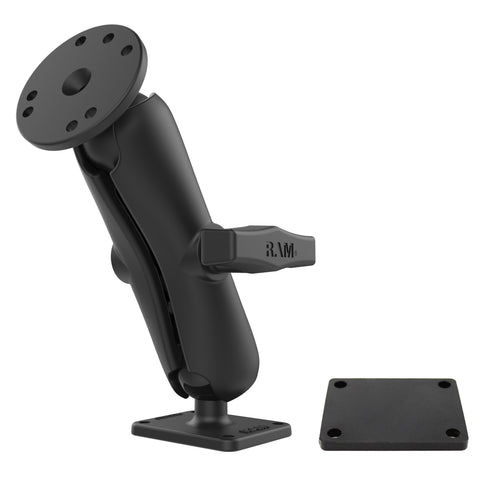

The RAM-101-SAE1 consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit comes with a backing plate and is a drill-down mount.

hardware included

(1) 2" x 2.5" Aluminum Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip

product dimensions

Overall Height: 7.35"

socket to socket length

4.66"

hole pattern

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Box

Weight

1.48 lb
