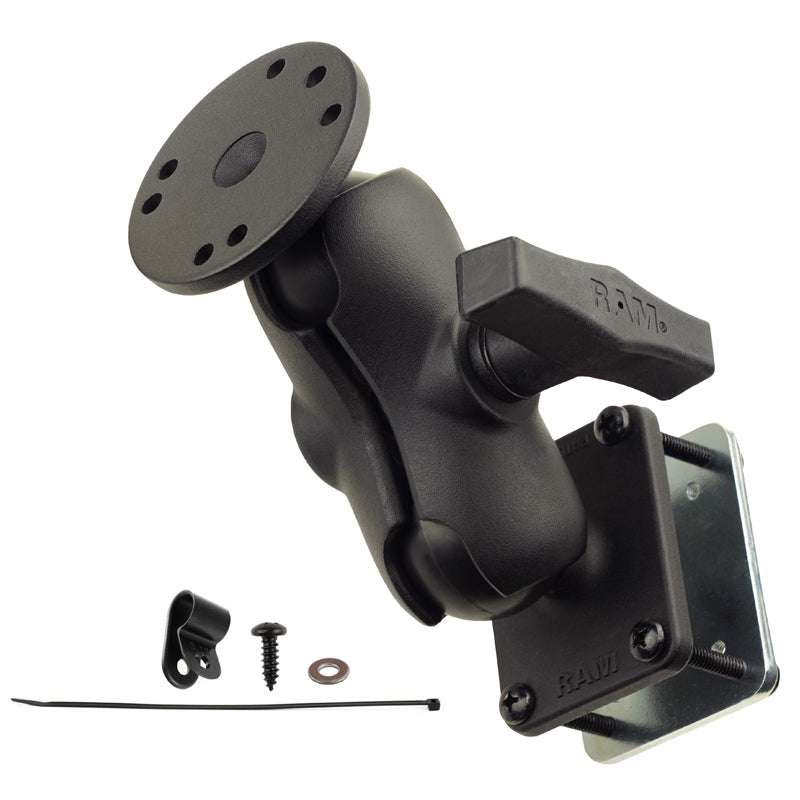

RAM^® Double Ball Mount with Steel Backing Plate
Part #: RAM-101-B-SAE1P-2U UPC: 793442138102 Features Drill-down mount with two 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate connects to RAM^® components containing the universal AMPS hole pattern Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information
Overview	The RAM-101-B-SAE1P-2U consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAM-101-B-SAE1P-2U consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	(1) 2.1 X 2.6" Steel Backing Plate (4) #10-24 x 1.5" Machine Screws (4) #10-24 Nylock Nuts (1) #8 x 1/2" Sheet Metal Screw (1) #8 Washer (1) 5/16" Wire Clip (1) 8" Zip Tie
product dimensions	Overall Height: 5.225"
socket to socket length	2.5"
hole pattern	Round Plate: 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Rectangular Plate: 1.5" x 2"
plate size	Round Plate: 2.5" Diameter Rectangular Plate: 2" x 2.5"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite Steel
packaging type	Poly Bag
Weight	1.25 lb

RAM<sup>®</sup> Double Ball Mount with Steel Backing Plate

Questions about our products? Email us for support.

RAM^® Double Ball Mount with Steel Backing Plate

Part#: RAM-101-B-SAE1P-2U

UPC: 793442138102

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$68.99
