RAM^® Cable Manager with AMPS Hole Pattern for Electronic Mounts

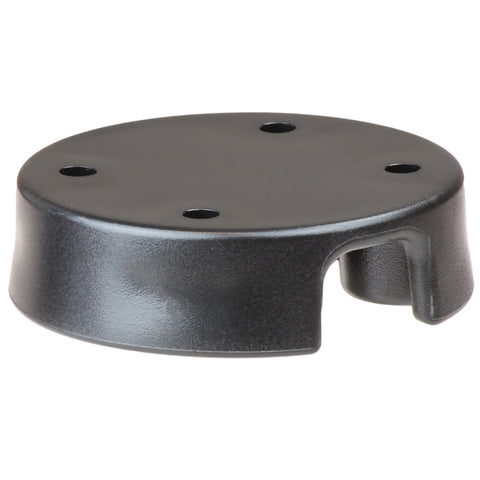

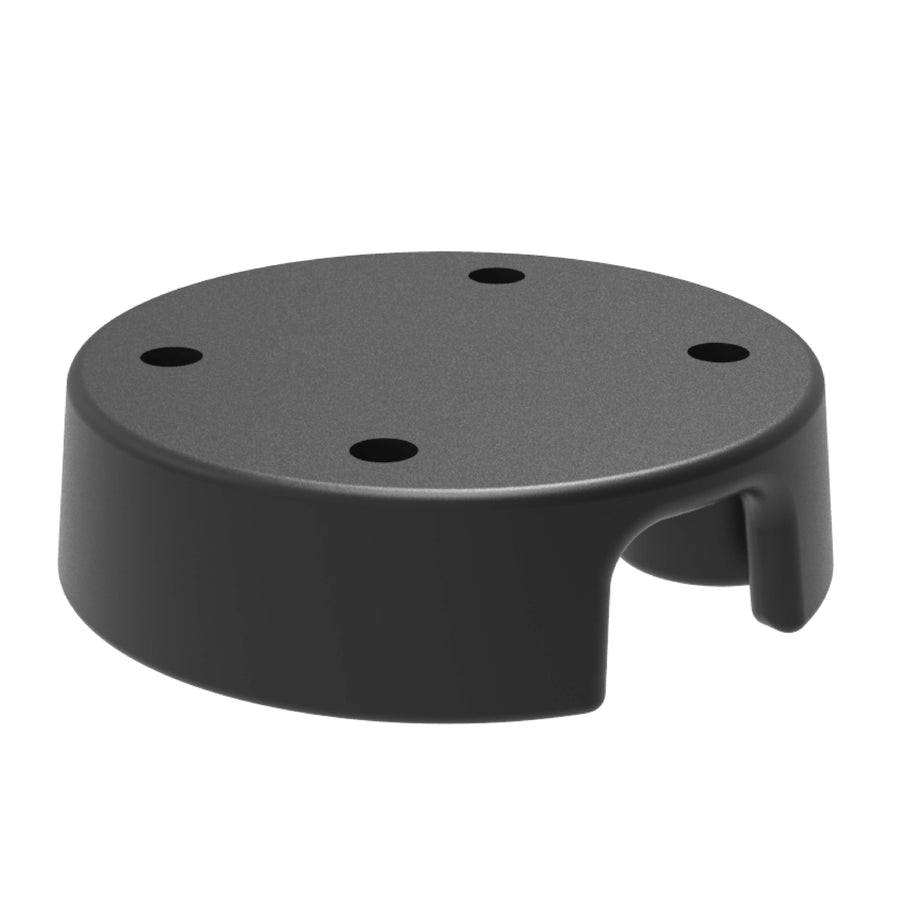

Part #: RAP-403U UPC: 793442944208 Features Includes 4-hole AMPS pattern mounting holes for RAM^® drill-down bases 0.56" x 0.7" side cutout allows for routing cables from the power source to the mounted device Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information
Overview	The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.

Product Information

Overview

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.

Specifications
hardware included	(4) #10-24 x 2" Machine Screws (4) #10-24 Nylock Nuts (4) #10 Fender Washers
product dimensions	Cable Slot Height: .56" Cable Slot Width: .7"
clamp range	Max mounting surface thickness: .68"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
Weight	0.25 lb
Additional Information	To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.

RAM<sup>®</sup> Cable Manager with AMPS Hole Pattern for Electronic Mounts

Questions about our products? Email us for support.

RAM^® Cable Manager with AMPS Hole Pattern for Electronic Mounts

Part#: RAP-403U

UPC: 793442944208

$15.49

Overview

Features

Includes 4-hole AMPS pattern mounting holes for RAM^® drill-down bases
0.56" x 0.7" side cutout allows for routing cables from the power source to the mounted device
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

product dimensions:

Cable Slot Height: .56"
Cable Slot Width: .7"

clamp range:

Max mounting surface thickness: .68"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.25 lb

Additional Information:

To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.

Print

Instructions

RAM Small Cable Manager Assembly Instructions

Documents

On Water Catalog

Questions & Answers

Have a Question?

Ask a Question

does Part#:RAP-403U fit with Humminbird Helix 7 Series

Yes, the RAP-403U is compatible with the round plate with ball that's normally recommended as the base mount for the Helix 7 mount, the RAM-202-24-202U.
