RAM^® Multi-Pad^™ with Yoke Clamp Mount
Part #: RAM-B-121-MP1U UPC: 793442007460

Product Information

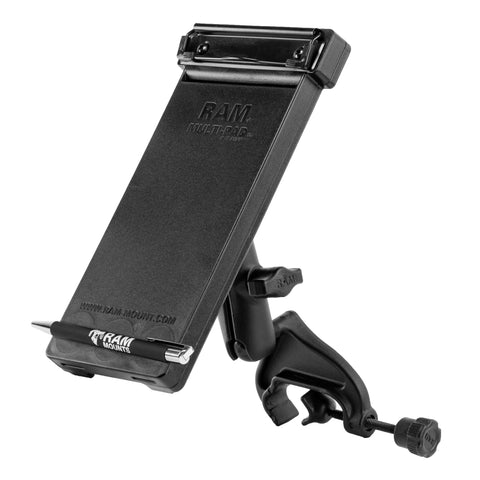

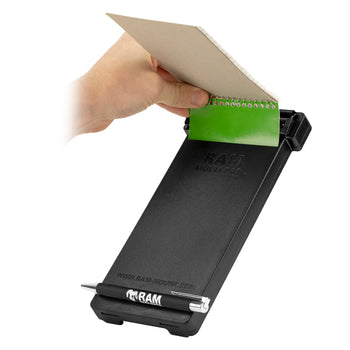

Overview	The RAM-B-121-MP1U consists of a 90-degree yoke clamp base, double socket arm and RAM^® Multi-Pad^™. The RAM^® Multi-Pad^™ is a rugged and efficient document holder with a spring-loaded clip for single documents, a slot for inserting 5" notepads, and built-in magnets at the bottom for securing the included RAM^® Pen. The included yoke clamp base can mount to any rail from 0.625" to 1.25" in diameter; ideal for Cessna and other aircraft yokes. The integrated ball and socket technology allows you to adjust the the RAM^® Multi-Pad^™ to the perfect viewing angle.

Product Information

Overview

The RAM-B-121-MP1U consists of a 90-degree yoke clamp base, double socket arm and RAM^® Multi-Pad^™. The RAM^® Multi-Pad^™ is a rugged and efficient document holder with a spring-loaded clip for single documents, a slot for inserting 5" notepads, and built-in magnets at the bottom for securing the included RAM^® Pen. The included yoke clamp base can mount to any rail from 0.625" to 1.25" in diameter; ideal for Cessna and other aircraft yokes. The integrated ball and socket technology allows you to adjust the the RAM^® Multi-Pad^™ to the perfect viewing angle.

Specifications
hardware included	Assembly Hardware
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.55 lb

RAM<sup>®</sup> Multi-Pad<sup>™</sup> with Yoke Clamp Mount

Questions about our products? Email us for support.

RAM^® Multi-Pad^™ with Yoke Clamp Mount

Part#: RAM-B-121-MP1U

UPC: 793442007460

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
