Overview

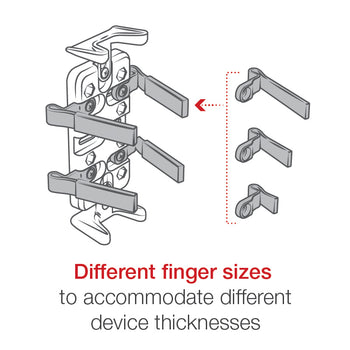

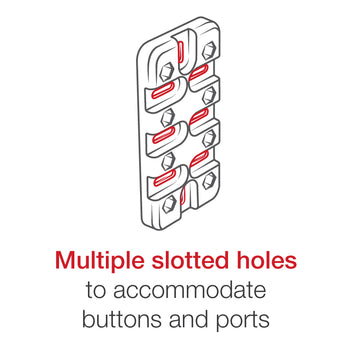

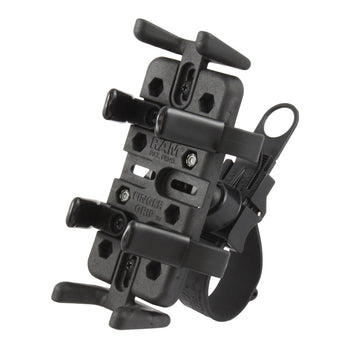

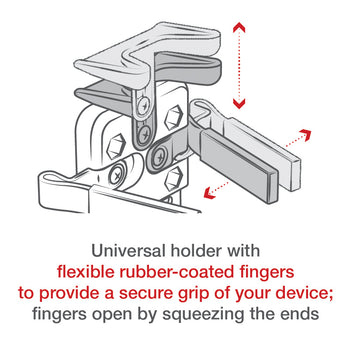

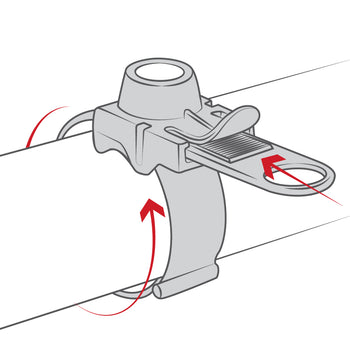

The RAP-SB-187-UN4 consists of the RAM EZ-Strap™ base, double ball SHORT arm, diamond adapter base and universal Finger Grip™ cradle. The strap can be cut to fit tubing, square rails and irregular shapes from 0.5" to 2.58" in diameter. Multiple adjustment points allow you to move the mount to your optimum viewing position. This mount rotates 180 degrees. The RAM Composite Universal Finger Grip™ cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The spine plate contains the universal AMPs and 1.5" x 2" hole patterns.
hardware included:
Assembly Hardware
holder dimensions:
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
clamp range:
.5" - 2.58" diameter
ball size:
RAM Snap-Link (3/4")
weight capacity:
.5 lb
materials:
High strength composite
packaging type:
Retail Bag
Weight:
0.68 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
